ChannelSwitch Class Reference

#include <channels.h>

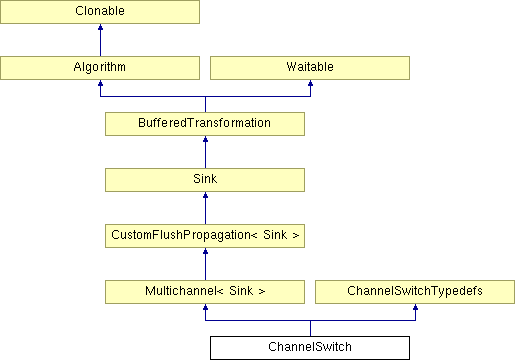

Inheritance diagram for ChannelSwitch:

Multichannel< Sink > ChannelSwitchTypedefs CustomFlushPropagation< Sink > Sink BufferedTransformation Algorithm Waitable Clonable List of all members.

Detailed Description

Route input to different and/or multiple channels based on channel ID.

Definition at line 81 of file channels.h.

Public Types

typedef std::pair< BufferedTransformation *,
std::string >
Route
typedef std::multimap< std::string,
Route
RouteMap
typedef std::pair< BufferedTransformation *,
value_ptr< std::string > >
DefaultRoute
typedef std::list< DefaultRouteDefaultRouteList
typedef RouteMap::iterator MapIterator
typedef DefaultRouteList::iterator ListIterator

Public Member Functions

 ChannelSwitch ()
 ChannelSwitch (BufferedTransformation &destination)
 ChannelSwitch (BufferedTransformation &destination, const std::string &outChannel)
void IsolatedInitialize (const NameValuePairs &parameters=g_nullNameValuePairs)
size_t ChannelPut2 (const std::string &channel, const byte *begin, size_t length, int messageEnd, bool blocking)
size_t ChannelPutModifiable2 (const std::string &channel, byte *begin, size_t length, int messageEnd, bool blocking)
bool ChannelFlush (const std::string &channel, bool completeFlush, int propagation=-1, bool blocking=true)
bool ChannelMessageSeriesEnd (const std::string &channel, int propagation=-1, bool blocking=true)
byte * ChannelCreatePutSpace (const std::string &channel, size_t &size)
void AddDefaultRoute (BufferedTransformation &destination)
void RemoveDefaultRoute (BufferedTransformation &destination)
void AddDefaultRoute (BufferedTransformation &destination, const std::string &outChannel)
void RemoveDefaultRoute (BufferedTransformation &destination, const std::string &outChannel)
void AddRoute (const std::string &inChannel, BufferedTransformation &destination, const std::string &outChannel)
void RemoveRoute (const std::string &inChannel, BufferedTransformation &destination, const std::string &outChannel)
bool Flush (bool hardFlush, int propagation=-1, bool blocking=true)
 flush buffered input and/or output
bool MessageSeriesEnd (int propagation=-1, bool blocking=true)
 mark end of a series of messages
byte * CreatePutSpace (size_t &size)
 request space which can be written into by the caller, and then used as input to Put()
size_t Put2 (const byte *begin, size_t length, int messageEnd, bool blocking)
 input multiple bytes for blocking or non-blocking processing
size_t PutModifiable2 (byte *inString, size_t length, int messageEnd, bool blocking)
 input multiple bytes that may be modified by callee for blocking or non-blocking processing
bool ChannelPutModifiable (const std::string &channel, byte *inString, size_t length)
size_t TransferTo2 (BufferedTransformation &target, lword &transferBytes, const std::string &channel=NULL_CHANNEL, bool blocking=true)
 upon return, byteCount contains number of bytes that have finished being transfered, and returns the number of bytes left in the current transfer block
size_t CopyRangeTo2 (BufferedTransformation &target, lword &begin, lword end=LWORD_MAX, const std::string &channel=NULL_CHANNEL, bool blocking=true) const
 upon return, begin contains the start position of data yet to be finished copying, and returns the number of bytes left in the current transfer block
BufferedTransformationRef ()
 return a reference to this object
virtual std::string AlgorithmName () const
 returns name of this algorithm, not universally implemented yet
virtual ClonableClone () const
 this is not implemented by most classes yet
bool Wait (unsigned long milliseconds, CallStack const &callStack)
 wait on this object
CHANNELS
size_t ChannelPutModifiable (const std::string &channel, byte *inString, size_t length, bool blocking=true)
size_t ChannelPut (const std::string &channel, byte inByte, bool blocking=true)
size_t ChannelPut (const std::string &channel, const byte *inString, size_t length, bool blocking=true)
size_t ChannelPutWord16 (const std::string &channel, word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
size_t ChannelPutWord32 (const std::string &channel, word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
bool ChannelMessageEnd (const std::string &channel, int propagation=-1, bool blocking=true)
size_t ChannelPutMessageEnd (const std::string &channel, const byte *inString, size_t length, int propagation=-1, bool blocking=true)
virtual void SetRetrievalChannel (const std::string &channel)
INPUT
size_t Put (byte inByte, bool blocking=true)
 input a byte for processing
size_t Put (const byte *inString, size_t length, bool blocking=true)
 input multiple bytes
size_t PutWord16 (word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 input a 16-bit word
size_t PutWord32 (word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 input a 32-bit word
virtual bool CanModifyInput () const
size_t PutModifiable (byte *inString, size_t length, bool blocking=true)
 input multiple bytes that may be modified by callee
bool MessageEnd (int propagation=-1, bool blocking=true)
size_t PutMessageEnd (const byte *inString, size_t length, int propagation=-1, bool blocking=true)
WAITING
unsigned int GetMaxWaitObjectCount () const
 maximum number of wait objects that this object can return
void GetWaitObjects (WaitObjectContainer &container, CallStack const &callStack)
 put wait objects into container
SIGNALS
virtual bool IsolatedMessageSeriesEnd (bool blocking)
virtual void Initialize (const NameValuePairs &parameters=g_nullNameValuePairs, int propagation=-1)
 initialize or reinitialize this object
virtual void SetAutoSignalPropagation (int propagation)
 set propagation of automatically generated and transferred signals
virtual int GetAutoSignalPropagation () const
RETRIEVAL OF ONE MESSAGE
virtual lword MaxRetrievable () const
 returns number of bytes that is currently ready for retrieval
virtual bool AnyRetrievable () const
 returns whether any bytes are currently ready for retrieval
virtual size_t Get (byte &outByte)
 try to retrieve a single byte
virtual size_t Get (byte *outString, size_t getMax)
 try to retrieve multiple bytes
virtual size_t Peek (byte &outByte) const
 peek at the next byte without removing it from the output buffer
virtual size_t Peek (byte *outString, size_t peekMax) const
 peek at multiple bytes without removing them from the output buffer
size_t GetWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 try to retrieve a 16-bit word
size_t GetWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 try to retrieve a 32-bit word
size_t PeekWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 try to peek at a 16-bit word
size_t PeekWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 try to peek at a 32-bit word
lword TransferTo (BufferedTransformation &target, lword transferMax=LWORD_MAX, const std::string &channel=NULL_CHANNEL)
 move transferMax bytes of the buffered output to target as input
virtual lword Skip (lword skipMax=LWORD_MAX)
 discard skipMax bytes from the output buffer
lword CopyTo (BufferedTransformation &target, lword copyMax=LWORD_MAX, const std::string &channel=NULL_CHANNEL) const
 copy copyMax bytes of the buffered output to target as input
lword CopyRangeTo (BufferedTransformation &target, lword position, lword copyMax=LWORD_MAX, const std::string &channel=NULL_CHANNEL) const
 copy copyMax bytes of the buffered output, starting at position (relative to current position), to target as input
RETRIEVAL OF MULTIPLE MESSAGES
virtual lword TotalBytesRetrievable () const
virtual unsigned int NumberOfMessages () const
 number of times MessageEnd() has been received minus messages retrieved or skipped
virtual bool AnyMessages () const
 returns true if NumberOfMessages() > 0
virtual bool GetNextMessage ()
 start retrieving the next message
virtual unsigned int SkipMessages (unsigned int count=UINT_MAX)
 skip count number of messages
unsigned int TransferMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=NULL_CHANNEL)
unsigned int CopyMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=NULL_CHANNEL) const
virtual void SkipAll ()
void TransferAllTo (BufferedTransformation &target, const std::string &channel=NULL_CHANNEL)
void CopyAllTo (BufferedTransformation &target, const std::string &channel=NULL_CHANNEL) const
virtual bool GetNextMessageSeries ()
virtual unsigned int NumberOfMessagesInThisSeries () const
virtual unsigned int NumberOfMessageSeries () const
NON-BLOCKING TRANSFER OF OUTPUT
size_t TransferMessagesTo2 (BufferedTransformation &target, unsigned int &messageCount, const std::string &channel=NULL_CHANNEL, bool blocking=true)
 upon return, messageCount contains number of messages that have finished being transfered, and returns the number of bytes left in the current transfer block
size_t TransferAllTo2 (BufferedTransformation &target, const std::string &channel=NULL_CHANNEL, bool blocking=true)
 returns the number of bytes left in the current transfer block
ATTACHMENT
virtual bool Attachable ()
 returns whether this object allows attachment
virtual BufferedTransformationAttachedTransformation ()
 returns the object immediately attached to this object or NULL for no attachment
virtual const BufferedTransformationAttachedTransformation () const
virtual void Detach (BufferedTransformation *newAttachment=0)
 delete the current attachment chain and replace it with newAttachment
virtual void Attach (BufferedTransformation *newAttachment)
 add newAttachment to the end of attachment chain

Static Public Attributes

static const std::string NULL_CHANNEL

Static Protected Member Functions

static int DecrementPropagation (int propagation)

Friends

class ChannelRouteIterator


Member Function Documentation

bool Multichannel< Sink >::Flush ( bool  hardFlush,
int  propagation = -1,
bool  blocking = true
) [inline, virtual, inherited]

Implements CustomFlushPropagation< Sink >.

Definition at line 125 of file simple.h.

bool Multichannel< Sink >::MessageSeriesEnd ( int  propagation = -1,
bool  blocking = true
) [inline, virtual, inherited]

Reimplemented from BufferedTransformation.

Definition at line 127 of file simple.h.

byte* Multichannel< Sink >::CreatePutSpace ( size_t &  size  )  [inline, virtual, inherited]

Reimplemented from BufferedTransformation.

Definition at line 129 of file simple.h.

size_t Multichannel< Sink >::Put2 ( const byte *  begin,
size_t  length,
int  messageEnd,
bool  blocking
) [inline, virtual, inherited]

Implements BufferedTransformation.

Definition at line 131 of file simple.h.

size_t Multichannel< Sink >::PutModifiable2 ( byte *  inString,
size_t  length,
int  messageEnd,
bool  blocking
) [inline, virtual, inherited]

Reimplemented from BufferedTransformation.

Definition at line 133 of file simple.h.

BufferedTransformation& BufferedTransformation::Ref (  )  [inline, inherited]

return a reference to this object

This function is useful for passing a temporary BufferedTransformation object to a function that takes a non-const reference.

Definition at line 722 of file cryptlib.h.

void BufferedTransformation::GetWaitObjects ( WaitObjectContainer container,
CallStack const &  callStack
) [virtual, inherited]

put wait objects into container

Parameters:
callStack is used for tracing no wait loops, example: something.GetWaitObjects(c, CallStack("my func after X", 0));
  • or in an outer GetWaitObjects() method that itself takes a callStack parameter: innerThing.GetWaitObjects(c, CallStack("MyClass::GetWaitObjects at X", &callStack));

Implements Waitable.

Reimplemented in Redirector, NetworkSource, and NetworkSink.

Definition at line 188 of file cryptlib.cpp.

References BufferedTransformation::AttachedTransformation(), and BufferedTransformation::GetWaitObjects().

Referenced by NetworkSource::GetWaitObjects(), and BufferedTransformation::GetWaitObjects().

virtual void BufferedTransformation::SetAutoSignalPropagation ( int  propagation  )  [inline, virtual, inherited]

set propagation of automatically generated and transferred signals

propagation == 0 means do not automaticly generate signals

Reimplemented in SourceTemplate< T >, SourceTemplate< FileStore >, SourceTemplate< RandomNumberStore >, SourceTemplate< StringStore >, AutoSignaling< BufferedTransformation >, AutoSignaling< InputRejecting< BufferedTransformation > >, AutoSignaling< Filter >, AutoSignaling< Source >, and AutoSignaling< Unflushable< Multichannel< Filter > > >.

Definition at line 799 of file cryptlib.h.

lword BufferedTransformation::MaxRetrievable (  )  const [virtual, inherited]

returns number of bytes that is currently ready for retrieval

All retrieval functions return the actual number of bytes retrieved, which is the lesser of the request number and MaxRetrievable().

Reimplemented in FileStore, RandomNumberStore, NullStore, MessageQueue, ByteQueue, ByteQueue::Walker, and RandomPool.

Definition at line 253 of file cryptlib.cpp.

References BufferedTransformation::AttachedTransformation(), BufferedTransformation::CopyTo(), and BufferedTransformation::MaxRetrievable().

Referenced by RandomNumberStore::AnyRetrievable(), Integer::BERDecode(), Integer::Decode(), DL_GroupParameters_EC< EC >::Initialize(), BufferedTransformation::MaxRetrievable(), EcRecommendedParameters< ECP >::NewEC(), EcRecommendedParameters< EC2N >::NewEC(), Integer::OpenPGPDecode(), and BufferedTransformation::TotalBytesRetrievable().

bool BufferedTransformation::GetNextMessage (  )  [virtual, inherited]

start retrieving the next message

Returns false if no more messages exist or this message is not completely retrieved.

Reimplemented in MessageQueue, and Store.

Definition at line 342 of file cryptlib.cpp.

References BufferedTransformation::AnyMessages(), BufferedTransformation::AttachedTransformation(), and BufferedTransformation::GetNextMessage().

Referenced by BufferedTransformation::GetNextMessage(), and BufferedTransformation::TransferMessagesTo2().

virtual bool BufferedTransformation::Attachable (  )  [inline, virtual, inherited]

returns whether this object allows attachment

Some BufferedTransformation objects (e.g. Filter objects) allow other BufferedTransformation objects to be attached. When this is done, the first object instead of buffering its output, sents that output to the attached object as input. The entire attachment chain is deleted when the anchor object is destructed.

Reimplemented in Filter.

Definition at line 949 of file cryptlib.h.

Referenced by BufferedTransformation::Attach().

bool Waitable::Wait ( unsigned long  milliseconds,
CallStack const &  callStack
) [inherited]

wait on this object

same as creating an empty container, calling GetWaitObjects(), and calling Wait() on the container

Definition at line 388 of file wait.cpp.

References Waitable::GetWaitObjects(), and WaitObjectContainer::Wait().

Referenced by NetworkSink::DoFlush(), and NetworkSource::DoPump().


The documentation for this class was generated from the following files:
Generated on Sat Dec 23 02:07:16 2006 for Crypto++ by  doxygen 1.5.1-p1
