AuthenticatedEncryptionFilter Class Reference

Filter wrapper for encrypting with AuthenticatedSymmetricCipher. More...

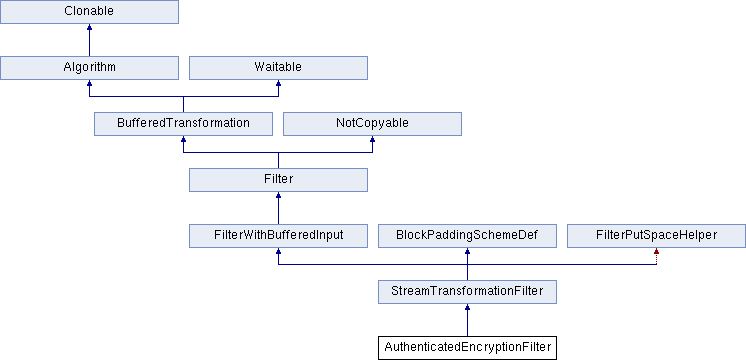

+ Inheritance diagram for AuthenticatedEncryptionFilter:

Public Member Functions

 AuthenticatedEncryptionFilter (AuthenticatedSymmetricCipher &c, BufferedTransformation *attachment=NULL, bool putAAD=false, int truncatedDigestSize=-1, const std::string &macChannel=DEFAULT_CHANNEL, BlockPaddingScheme padding=DEFAULT_PADDING)
 Construct a AuthenticatedEncryptionFilter. More...

void IsolatedInitialize (const NameValuePairs &parameters)
 Initialize or reinitialize this object, without signal propagation. More...

byteChannelCreatePutSpace (const std::string &channel, size_t &size)
 Request space which can be written into by the caller. More...

size_t ChannelPut2 (const std::string &channel, const byte *begin, size_t length, int messageEnd, bool blocking)
 Input multiple bytes for processing on a channel. More...

void LastPut (const byte *inString, size_t length)
 Input the last block of data. More...

- Public Member Functions inherited from StreamTransformationFilter
 StreamTransformationFilter (StreamTransformation &c, BufferedTransformation *attachment=NULL, BlockPaddingScheme padding=DEFAULT_PADDING)
 Construct a StreamTransformationFilter. More...

std::string AlgorithmName () const
 Provides the name of this algorithm. More...

- Public Member Functions inherited from FilterWithBufferedInput
 FilterWithBufferedInput (BufferedTransformation *attachment)
 Construct a FilterWithBufferedInput with an attached transformation. More...

 FilterWithBufferedInput (size_t firstSize, size_t blockSize, size_t lastSize, BufferedTransformation *attachment)
 Construct a FilterWithBufferedInput with an attached transformation. More...

size_t Put2 (const byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes for processing. More...

size_t PutModifiable2 (byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes that may be modified by callee. More...

bool IsolatedFlush (bool hardFlush, bool blocking)
 Flushes data buffered by this object, without signal propagation. More...

void ForceNextPut ()
 Flushes data buffered by this object. More...

- Public Member Functions inherited from Filter
 Filter (BufferedTransformation *attachment=NULL)
 Construct a Filter. More...

bool Attachable ()
 Determine if attachable. More...

BufferedTransformationAttachedTransformation ()
 Retrieve attached transformation. More...

const BufferedTransformationAttachedTransformation () const
 Retrieve attached transformation. More...

void Detach (BufferedTransformation *newAttachment=NULL)
 Replace an attached transformation. More...

size_t TransferTo2 (BufferedTransformation &target, lword &transferBytes, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer bytes from this object to another BufferedTransformation. More...

size_t CopyRangeTo2 (BufferedTransformation &target, lword &begin, lword end=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true) const
 Copy bytes from this object to another BufferedTransformation. More...

void Initialize (const NameValuePairs &parameters=g_nullNameValuePairs, int propagation=-1)
 Initialize or reinitialize this object, with signal propagation. More...

bool Flush (bool hardFlush, int propagation=-1, bool blocking=true)
 Flush buffered input and/or output, with signal propagation. More...

bool MessageSeriesEnd (int propagation=-1, bool blocking=true)
 Marks the end of a series of messages, with signal propagation. More...

- Public Member Functions inherited from BufferedTransformation
 BufferedTransformation ()
 Construct a BufferedTransformation.

BufferedTransformationRef ()
 Provides a reference to this object. More...

virtual void Attach (BufferedTransformation *newAttachment)
 Add newAttachment to the end of attachment chain. More...

size_t Put (byte inByte, bool blocking=true)
 Input a byte for processing. More...

size_t Put (const byte *inString, size_t length, bool blocking=true)
 Input a byte buffer for processing. More...

size_t PutWord16 (word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 16-bit word for processing. More...

size_t PutWord32 (word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 32-bit word for processing. More...

size_t PutWord64 (word64 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 64-bit word for processing. More...

virtual byteCreatePutSpace (size_t &size)
 Request space which can be written into by the caller. More...

virtual bool CanModifyInput () const
 Determines whether input can be modified by the callee. More...

size_t PutModifiable (byte *inString, size_t length, bool blocking=true)
 Input multiple bytes that may be modified by callee. More...

bool MessageEnd (int propagation=-1, bool blocking=true)
 Signals the end of messages to the object. More...

size_t PutMessageEnd (const byte *inString, size_t length, int propagation=-1, bool blocking=true)
 Input multiple bytes for processing and signal the end of a message. More...

unsigned int GetMaxWaitObjectCount () const
 Retrieves the maximum number of waitable objects.

void GetWaitObjects (WaitObjectContainer &container, CallStack const &callStack)
 Retrieves waitable objects. More...

virtual bool IsolatedMessageSeriesEnd (bool blocking)
 Marks the end of a series of messages, without signal propagation. More...

virtual void SetAutoSignalPropagation (int propagation)
 Set propagation of automatically generated and transferred signals. More...

virtual int GetAutoSignalPropagation () const
 Retrieve automatic signal propagation value. More...

virtual lword MaxRetrievable () const
 Provides the number of bytes ready for retrieval. More...

virtual bool AnyRetrievable () const
 Determines whether bytes are ready for retrieval. More...

virtual size_t Get (byte &outByte)
 Retrieve a 8-bit byte. More...

virtual size_t Get (byte *outString, size_t getMax)
 Retrieve a block of bytes. More...

virtual size_t Peek (byte &outByte) const
 Peek a 8-bit byte. More...

virtual size_t Peek (byte *outString, size_t peekMax) const
 Peek a block of bytes. More...

size_t GetWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 16-bit word. More...

size_t GetWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 32-bit word. More...

size_t GetWord64 (word64 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 64-bit word. More...

size_t PeekWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 16-bit word. More...

size_t PeekWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 32-bit word. More...

size_t PeekWord64 (word64 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 64-bit word. More...

lword TransferTo (BufferedTransformation &target, lword transferMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL)
 move transferMax bytes of the buffered output to target as input More...

virtual lword Skip (lword skipMax=LWORD_MAX)
 Discard skipMax bytes from the output buffer. More...

lword CopyTo (BufferedTransformation &target, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy bytes from this object to another BufferedTransformation. More...

lword CopyRangeTo (BufferedTransformation &target, lword position, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy bytes from this object using an index to another BufferedTransformation. More...

virtual lword TotalBytesRetrievable () const
 Provides the number of bytes ready for retrieval. More...

virtual unsigned int NumberOfMessages () const
 Provides the number of meesages processed by this object. More...

virtual bool AnyMessages () const
 Determines if any messages are available for retrieval. More...

virtual bool GetNextMessage ()
 Start retrieving the next message. More...

virtual unsigned int SkipMessages (unsigned int count=UINT_MAX)
 Skip a number of meessages. More...

unsigned int TransferMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL)
 Transfer messages from this object to another BufferedTransformation. More...

unsigned int CopyMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy messages from this object to another BufferedTransformation. More...

virtual void SkipAll ()
 Skip all messages in the series.

void TransferAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL)
 Transfer all bytes from this object to another BufferedTransformation. More...

void CopyAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL) const
 Copy messages from this object to another BufferedTransformation. More...

virtual bool GetNextMessageSeries ()
 Retrieve the next message in a series. More...

virtual unsigned int NumberOfMessagesInThisSeries () const
 Provides the number of messages in a series. More...

virtual unsigned int NumberOfMessageSeries () const
 Provides the number of messages in a series. More...

size_t TransferMessagesTo2 (BufferedTransformation &target, unsigned int &messageCount, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer messages from this object to another BufferedTransformation. More...

size_t TransferAllTo2 (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer all bytes from this object to another BufferedTransformation. More...

size_t ChannelPut (const std::string &channel, byte inByte, bool blocking=true)
 Input a byte for processing on a channel. More...

size_t ChannelPut (const std::string &channel, const byte *inString, size_t length, bool blocking=true)
 Input a byte buffer for processing on a channel. More...

size_t ChannelPutModifiable (const std::string &channel, byte *inString, size_t length, bool blocking=true)
 Input multiple bytes that may be modified by callee on a channel. More...

size_t ChannelPutWord16 (const std::string &channel, word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 16-bit word for processing on a channel. More...

size_t ChannelPutWord32 (const std::string &channel, word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 32-bit word for processing on a channel. More...

size_t ChannelPutWord64 (const std::string &channel, word64 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 64-bit word for processing on a channel. More...

bool ChannelMessageEnd (const std::string &channel, int propagation=-1, bool blocking=true)
 Signal the end of a message. More...

size_t ChannelPutMessageEnd (const std::string &channel, const byte *inString, size_t length, int propagation=-1, bool blocking=true)
 Input multiple bytes for processing and signal the end of a message. More...

virtual size_t ChannelPutModifiable2 (const std::string &channel, byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes that may be modified by callee on a channel. More...

virtual bool ChannelFlush (const std::string &channel, bool hardFlush, int propagation=-1, bool blocking=true)
 Flush buffered input and/or output on a channel. More...

virtual bool ChannelMessageSeriesEnd (const std::string &channel, int propagation=-1, bool blocking=true)
 Marks the end of a series of messages on a channel. More...

virtual void SetRetrievalChannel (const std::string &channel)
 Sets the default retrieval channel. More...

- Public Member Functions inherited from Algorithm
 Algorithm (bool checkSelfTestStatus=true)
 Interface for all crypto algorithms. More...

virtual std::string AlgorithmProvider () const
 Retrieve the provider of this algorithm. More...

- Public Member Functions inherited from Clonable
virtual ClonableClone () const
 Copies this object. More...

- Public Member Functions inherited from Waitable
bool Wait (unsigned long milliseconds, CallStack const &callStack)
 Wait on this object. More...


Additional Inherited Members

- Public Types inherited from BlockPaddingSchemeDef
enum  BlockPaddingScheme {
  NO_PADDING , ZEROS_PADDING , PKCS_PADDING , ONE_AND_ZEROS_PADDING ,
  W3C_PADDING , DEFAULT_PADDING
}
 Padding schemes used for block ciphers. More...


Detailed Description

Filter wrapper for encrypting with AuthenticatedSymmetricCipher.

AuthenticatedEncryptionFilter() is a wrapper for encrypting with AuthenticatedSymmetricCipher(), optionally handling padding/unpadding when needed.

AuthenticatedDecryptionFilter() for Crypto++ 8.2 and earlier had a bug where a FileSource() would cause an exception, but a StringSource() was OK. Also see Issue 817 and Commit ff110c6e183e.

See also
AuthenticatedSymmetricCipher, AuthenticatedDecryptionFilter, EAX, CCM, GCM, and AadSource on the Crypto++ wiki.
Since
Crypto++ 5.6.0

Definition at line 682 of file filters.h.

Constructor & Destructor Documentation

◆ AuthenticatedEncryptionFilter()

AuthenticatedEncryptionFilter::AuthenticatedEncryptionFilter ( AuthenticatedSymmetricCipher c,
BufferedTransformation attachment = NULL,
bool  putAAD = false,
int  truncatedDigestSize = -1,
const std::string &  macChannel = DEFAULT_CHANNEL,
BlockPaddingScheme  padding = DEFAULT_PADDING
)

Construct a AuthenticatedEncryptionFilter.

Parameters
creference to a AuthenticatedSymmetricCipher
attachmentan optional attached transformation
putAADflag indicating whether the AAD should be passed to an attached transformation
truncatedDigestSizethe size of the digest
macChannelthe channel on which the MAC should be output
paddingthe padding scheme

truncatedDigestSize = -1 indicates DigestSize should be used.

Since
Crypto++ 5.6.0

Member Function Documentation

◆ IsolatedInitialize()

void AuthenticatedEncryptionFilter::IsolatedInitialize ( const NameValuePairs parameters)
virtual

Initialize or reinitialize this object, without signal propagation.

Parameters
parametersa set of NameValuePairs to initialize this object
Exceptions
NotImplemented

IsolatedInitialize() is used to initialize or reinitialize an object using a variable number of arbitrarily typed arguments. The function avoids the need for multiple constructors providing all possible combintations of configurable parameters.

IsolatedInitialize() does not call Initialize() on attached transformations. If initialization should be propagated, then use the Initialize() function.

If a derived class does not override IsolatedInitialize(), then the base class throws NotImplemented.

Reimplemented from FilterWithBufferedInput.

◆ ChannelCreatePutSpace()

byte* AuthenticatedEncryptionFilter::ChannelCreatePutSpace ( const std::string &  channel,
size_t &  size
)
virtual

Request space which can be written into by the caller.

Parameters
channelthe channel to process the data
sizethe requested size of the buffer
Returns
a pointer to a memory block with length size

The purpose of this method is to help avoid extra memory allocations.

size is an IN and OUT parameter and used as a hint. When the call is made, size is the requested size of the buffer. When the call returns, size is the size of the array returned to the caller.

The base class implementation sets size to 0 and returns NULL.

Note
Some objects, like ArraySink(), cannot create a space because its fixed. In the case of an ArraySink(), the pointer to the array is returned and the size is remaining size.

Reimplemented from BufferedTransformation.

◆ ChannelPut2()

size_t AuthenticatedEncryptionFilter::ChannelPut2 ( const std::string &  channel,
const byte inString,
size_t  length,
int  messageEnd,
bool  blocking
)
virtual

Input multiple bytes for processing on a channel.

Parameters
channelthe channel to process the data.
inStringthe byte buffer to process.
lengththe size of the string, in bytes.
messageEndmeans how many filters to signal MessageEnd() to, including this one.
blockingspecifies whether the object should block when processing input.
Returns
the number of bytes that remain to be processed (i.e., bytes not processed)

Reimplemented from BufferedTransformation.

◆ LastPut()

void AuthenticatedEncryptionFilter::LastPut ( const byte inString,
size_t  length
)
virtual

Input the last block of data.

Parameters
inStringthe input byte buffer
lengththe size of the input buffer, in bytes

LastPut() processes the last block of data and signals attached filters to do the same. LastPut() is always called. The pseudo algorithm for the logic is:

    if totalLength < firstSize then length == totalLength
    else if totalLength <= firstSize+lastSize then length == totalLength-firstSize
    else lastSize <= length < lastSize+blockSize

Reimplemented from StreamTransformationFilter.


The documentation for this class was generated from the following file:
