AuthenticatedDecryptionFilter Class Reference

Filter wrapper for decrypting with AuthenticatedSymmetricCipher. More...

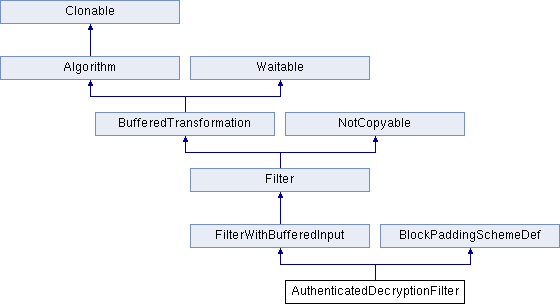

+ Inheritance diagram for AuthenticatedDecryptionFilter:

Public Types

enum  Flags { MAC_AT_END =0 , MAC_AT_BEGIN =1 , THROW_EXCEPTION =16 , DEFAULT_FLAGS = THROW_EXCEPTION }
 Flags controlling filter behavior. More...

- Public Types inherited from BlockPaddingSchemeDef
enum  BlockPaddingScheme {
  NO_PADDING , ZEROS_PADDING , PKCS_PADDING , ONE_AND_ZEROS_PADDING ,
  W3C_PADDING , DEFAULT_PADDING
}
 Padding schemes used for block ciphers. More...


Public Member Functions

 AuthenticatedDecryptionFilter (AuthenticatedSymmetricCipher &c, BufferedTransformation *attachment=NULL, word32 flags=DEFAULT_FLAGS, int truncatedDigestSize=-1, BlockPaddingScheme padding=DEFAULT_PADDING)
 Construct a AuthenticatedDecryptionFilter. More...

std::string AlgorithmName () const
 Provides the name of this algorithm. More...

byteChannelCreatePutSpace (const std::string &channel, size_t &size)
 Request space which can be written into by the caller. More...

size_t ChannelPut2 (const std::string &channel, const byte *begin, size_t length, int messageEnd, bool blocking)
 Input multiple bytes for processing on a channel. More...

size_t ChannelPutModifiable2 (const std::string &channel, byte *begin, size_t length, int messageEnd, bool blocking)
 Input multiple bytes that may be modified by callee on a channel. More...

bool GetLastResult () const
 Get verifier result. More...

- Public Member Functions inherited from FilterWithBufferedInput
 FilterWithBufferedInput (BufferedTransformation *attachment)
 Construct a FilterWithBufferedInput with an attached transformation. More...

 FilterWithBufferedInput (size_t firstSize, size_t blockSize, size_t lastSize, BufferedTransformation *attachment)
 Construct a FilterWithBufferedInput with an attached transformation. More...

void IsolatedInitialize (const NameValuePairs &parameters)
 Initialize or reinitialize this object, without signal propagation. More...

size_t Put2 (const byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes for processing. More...

size_t PutModifiable2 (byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes that may be modified by callee. More...

bool IsolatedFlush (bool hardFlush, bool blocking)
 Flushes data buffered by this object, without signal propagation. More...

void ForceNextPut ()
 Flushes data buffered by this object. More...

- Public Member Functions inherited from Filter
 Filter (BufferedTransformation *attachment=NULL)
 Construct a Filter. More...

bool Attachable ()
 Determine if attachable. More...

BufferedTransformationAttachedTransformation ()
 Retrieve attached transformation. More...

const BufferedTransformationAttachedTransformation () const
 Retrieve attached transformation. More...

void Detach (BufferedTransformation *newAttachment=NULL)
 Replace an attached transformation. More...

size_t TransferTo2 (BufferedTransformation &target, lword &transferBytes, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer bytes from this object to another BufferedTransformation. More...

size_t CopyRangeTo2 (BufferedTransformation &target, lword &begin, lword end=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true) const
 Copy bytes from this object to another BufferedTransformation. More...

void Initialize (const NameValuePairs &parameters=g_nullNameValuePairs, int propagation=-1)
 Initialize or reinitialize this object, with signal propagation. More...

bool Flush (bool hardFlush, int propagation=-1, bool blocking=true)
 Flush buffered input and/or output, with signal propagation. More...

bool MessageSeriesEnd (int propagation=-1, bool blocking=true)
 Marks the end of a series of messages, with signal propagation. More...

- Public Member Functions inherited from BufferedTransformation
 BufferedTransformation ()
 Construct a BufferedTransformation.

BufferedTransformationRef ()
 Provides a reference to this object. More...

virtual void Attach (BufferedTransformation *newAttachment)
 Add newAttachment to the end of attachment chain. More...

size_t Put (byte inByte, bool blocking=true)
 Input a byte for processing. More...

size_t Put (const byte *inString, size_t length, bool blocking=true)
 Input a byte buffer for processing. More...

size_t PutWord16 (word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 16-bit word for processing. More...

size_t PutWord32 (word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 32-bit word for processing. More...

size_t PutWord64 (word64 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 64-bit word for processing. More...

virtual byteCreatePutSpace (size_t &size)
 Request space which can be written into by the caller. More...

virtual bool CanModifyInput () const
 Determines whether input can be modified by the callee. More...

size_t PutModifiable (byte *inString, size_t length, bool blocking=true)
 Input multiple bytes that may be modified by callee. More...

bool MessageEnd (int propagation=-1, bool blocking=true)
 Signals the end of messages to the object. More...

size_t PutMessageEnd (const byte *inString, size_t length, int propagation=-1, bool blocking=true)
 Input multiple bytes for processing and signal the end of a message. More...

unsigned int GetMaxWaitObjectCount () const
 Retrieves the maximum number of waitable objects.

void GetWaitObjects (WaitObjectContainer &container, CallStack const &callStack)
 Retrieves waitable objects. More...

virtual bool IsolatedMessageSeriesEnd (bool blocking)
 Marks the end of a series of messages, without signal propagation. More...

virtual void SetAutoSignalPropagation (int propagation)
 Set propagation of automatically generated and transferred signals. More...

virtual int GetAutoSignalPropagation () const
 Retrieve automatic signal propagation value. More...

virtual lword MaxRetrievable () const
 Provides the number of bytes ready for retrieval. More...

virtual bool AnyRetrievable () const
 Determines whether bytes are ready for retrieval. More...

virtual size_t Get (byte &outByte)
 Retrieve a 8-bit byte. More...

virtual size_t Get (byte *outString, size_t getMax)
 Retrieve a block of bytes. More...

virtual size_t Peek (byte &outByte) const
 Peek a 8-bit byte. More...

virtual size_t Peek (byte *outString, size_t peekMax) const
 Peek a block of bytes. More...

size_t GetWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 16-bit word. More...

size_t GetWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 32-bit word. More...

size_t GetWord64 (word64 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 64-bit word. More...

size_t PeekWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 16-bit word. More...

size_t PeekWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 32-bit word. More...

size_t PeekWord64 (word64 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 64-bit word. More...

lword TransferTo (BufferedTransformation &target, lword transferMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL)
 move transferMax bytes of the buffered output to target as input More...

virtual lword Skip (lword skipMax=LWORD_MAX)
 Discard skipMax bytes from the output buffer. More...

lword CopyTo (BufferedTransformation &target, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy bytes from this object to another BufferedTransformation. More...

lword CopyRangeTo (BufferedTransformation &target, lword position, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy bytes from this object using an index to another BufferedTransformation. More...

virtual lword TotalBytesRetrievable () const
 Provides the number of bytes ready for retrieval. More...

virtual unsigned int NumberOfMessages () const
 Provides the number of meesages processed by this object. More...

virtual bool AnyMessages () const
 Determines if any messages are available for retrieval. More...

virtual bool GetNextMessage ()
 Start retrieving the next message. More...

virtual unsigned int SkipMessages (unsigned int count=UINT_MAX)
 Skip a number of meessages. More...

unsigned int TransferMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL)
 Transfer messages from this object to another BufferedTransformation. More...

unsigned int CopyMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy messages from this object to another BufferedTransformation. More...

virtual void SkipAll ()
 Skip all messages in the series.

void TransferAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL)
 Transfer all bytes from this object to another BufferedTransformation. More...

void CopyAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL) const
 Copy messages from this object to another BufferedTransformation. More...

virtual bool GetNextMessageSeries ()
 Retrieve the next message in a series. More...

virtual unsigned int NumberOfMessagesInThisSeries () const
 Provides the number of messages in a series. More...

virtual unsigned int NumberOfMessageSeries () const
 Provides the number of messages in a series. More...

size_t TransferMessagesTo2 (BufferedTransformation &target, unsigned int &messageCount, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer messages from this object to another BufferedTransformation. More...

size_t TransferAllTo2 (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer all bytes from this object to another BufferedTransformation. More...

size_t ChannelPut (const std::string &channel, byte inByte, bool blocking=true)
 Input a byte for processing on a channel. More...

size_t ChannelPut (const std::string &channel, const byte *inString, size_t length, bool blocking=true)
 Input a byte buffer for processing on a channel. More...

size_t ChannelPutModifiable (const std::string &channel, byte *inString, size_t length, bool blocking=true)
 Input multiple bytes that may be modified by callee on a channel. More...

size_t ChannelPutWord16 (const std::string &channel, word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 16-bit word for processing on a channel. More...

size_t ChannelPutWord32 (const std::string &channel, word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 32-bit word for processing on a channel. More...

size_t ChannelPutWord64 (const std::string &channel, word64 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 64-bit word for processing on a channel. More...

bool ChannelMessageEnd (const std::string &channel, int propagation=-1, bool blocking=true)
 Signal the end of a message. More...

size_t ChannelPutMessageEnd (const std::string &channel, const byte *inString, size_t length, int propagation=-1, bool blocking=true)
 Input multiple bytes for processing and signal the end of a message. More...

virtual bool ChannelFlush (const std::string &channel, bool hardFlush, int propagation=-1, bool blocking=true)
 Flush buffered input and/or output on a channel. More...

virtual bool ChannelMessageSeriesEnd (const std::string &channel, int propagation=-1, bool blocking=true)
 Marks the end of a series of messages on a channel. More...

virtual void SetRetrievalChannel (const std::string &channel)
 Sets the default retrieval channel. More...

- Public Member Functions inherited from Algorithm
 Algorithm (bool checkSelfTestStatus=true)
 Interface for all crypto algorithms. More...

virtual std::string AlgorithmProvider () const
 Retrieve the provider of this algorithm. More...

- Public Member Functions inherited from Clonable
virtual ClonableClone () const
 Copies this object. More...

- Public Member Functions inherited from Waitable
bool Wait (unsigned long milliseconds, CallStack const &callStack)
 Wait on this object. More...


Detailed Description

Filter wrapper for decrypting with AuthenticatedSymmetricCipher.

AuthenticatedDecryptionFilter() is a wrapper for decrypting with AuthenticatedSymmetricCipher(), optionally handling padding/unpadding when needed.

AuthenticatedDecryptionFilter() for Crypto++ 8.2 and earlier had a bug where a FileSource() would cause an exception, but a StringSource() was OK. Also see Issue 817 and Commit ff110c6e183e.

See also
AuthenticatedSymmetricCipher, AuthenticatedEncryptionFilter, EAX, CCM, GCM, and AadSource on the Crypto++ wiki.
Since
Crypto++ 5.6.0

Definition at line 731 of file filters.h.

Member Enumeration Documentation

◆ Flags

Flags controlling filter behavior.

The flags are a bitmask and can be OR'd together.

Enumerator
MAC_AT_END

The MAC is at the end of the message (i.e., concatenation of message+mac)

MAC_AT_BEGIN

The MAC is at the beginning of the message (i.e., concatenation of mac+message)

THROW_EXCEPTION

The filter should throw a HashVerificationFailed if a failure is encountered.

DEFAULT_FLAGS

Default flags using THROW_EXCEPTION.

Definition at line 737 of file filters.h.

Constructor & Destructor Documentation

◆ AuthenticatedDecryptionFilter()

AuthenticatedDecryptionFilter::AuthenticatedDecryptionFilter ( AuthenticatedSymmetricCipher c,
BufferedTransformation attachment = NULL,
word32  flags = DEFAULT_FLAGS,
int  truncatedDigestSize = -1,
BlockPaddingScheme  padding = DEFAULT_PADDING
)

Construct a AuthenticatedDecryptionFilter.

Parameters
creference to a AuthenticatedSymmetricCipher
attachmentan optional attached transformation
flagsflags indicating behaviors for the filter
truncatedDigestSizethe size of the digest
paddingthe padding scheme

Additional authenticated data should be given in channel "AAD".

truncatedDigestSize = -1 indicates DigestSize should be used.

Since
Crypto++ 5.6.0

Member Function Documentation

◆ AlgorithmName()

std::string AuthenticatedDecryptionFilter::AlgorithmName ( ) const
inlinevirtual

Provides the name of this algorithm.

Returns
the standard algorithm name

The standard algorithm name can be a name like AES or AES/GCM. Some algorithms do not have standard names yet. For example, there is no standard algorithm name for Shoup's ECIES.

Note
AlgorithmName is not universally implemented yet.

Reimplemented from Algorithm.

Definition at line 761 of file filters.h.

◆ ChannelCreatePutSpace()

byte* AuthenticatedDecryptionFilter::ChannelCreatePutSpace ( const std::string &  channel,
size_t &  size
)
virtual

Request space which can be written into by the caller.

Parameters
channelthe channel to process the data
sizethe requested size of the buffer
Returns
a pointer to a memory block with length size

The purpose of this method is to help avoid extra memory allocations.

size is an IN and OUT parameter and used as a hint. When the call is made, size is the requested size of the buffer. When the call returns, size is the size of the array returned to the caller.

The base class implementation sets size to 0 and returns NULL.

Note
Some objects, like ArraySink(), cannot create a space because its fixed. In the case of an ArraySink(), the pointer to the array is returned and the size is remaining size.

Reimplemented from BufferedTransformation.

◆ ChannelPut2()

size_t AuthenticatedDecryptionFilter::ChannelPut2 ( const std::string &  channel,
const byte inString,
size_t  length,
int  messageEnd,
bool  blocking
)
virtual

Input multiple bytes for processing on a channel.

Parameters
channelthe channel to process the data.
inStringthe byte buffer to process.
lengththe size of the string, in bytes.
messageEndmeans how many filters to signal MessageEnd() to, including this one.
blockingspecifies whether the object should block when processing input.
Returns
the number of bytes that remain to be processed (i.e., bytes not processed)

Reimplemented from BufferedTransformation.

◆ ChannelPutModifiable2()

size_t AuthenticatedDecryptionFilter::ChannelPutModifiable2 ( const std::string &  channel,
byte inString,
size_t  length,
int  messageEnd,
bool  blocking
)
inlinevirtual

Input multiple bytes that may be modified by callee on a channel.

Parameters
channelthe channel to process the data
inStringthe byte buffer to process
lengththe size of the string, in bytes
messageEndmeans how many filters to signal MessageEnd() to, including this one
blockingspecifies whether the object should block when processing input
Returns
the number of bytes that remain to be processed (i.e., bytes not processed)

Reimplemented from BufferedTransformation.

Definition at line 764 of file filters.h.

◆ GetLastResult()

bool AuthenticatedDecryptionFilter::GetLastResult ( ) const
inline

Get verifier result.

Returns
true if the digest on the previosus message was valid, false otherwise

Definition at line 768 of file filters.h.


The documentation for this class was generated from the following file:
