DH Struct Reference

Diffie-Hellman in GF(p) More...

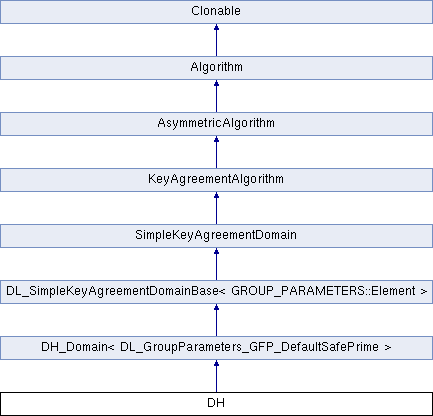

+ Inheritance diagram for DH:

Public Types

typedef DH_Domain< DL_GroupParameters_GFP_DefaultSafePrimeGroupParameters

typedef GroupParameters::Element Element

- Public Types inherited from DH_Domain< DL_GroupParameters_GFP_DefaultSafePrime >
typedef DL_GroupParameters_GFP_DefaultSafePrime GroupParameters

typedef GroupParameters::Element Element

typedef DL_KeyAgreementAlgorithm_DH< Element, typename DL_GroupParameters_GFP_DefaultSafePrime ::DefaultCofactorOption > DH_Algorithm

typedef DH_Domain< DL_GroupParameters_GFP_DefaultSafePrime, typename DL_GroupParameters_GFP_DefaultSafePrime ::DefaultCofactorOption > Domain

- Public Types inherited from DL_SimpleKeyAgreementDomainBase< DL_GroupParameters_GFP_DefaultSafePrime ::Element >
typedef DL_GroupParameters_GFP_DefaultSafePrime ::Element Element


Public Member Functions

 DH ()
 Create an uninitialized Diffie-Hellman object.

 DH (BufferedTransformation &bt)
 Initialize a Diffie-Hellman object. More...

 DH (const GroupParameters &params)
 Initialize a Diffie-Hellman object. More...

 DH (RandomNumberGenerator &rng, unsigned int modulusBits)
 Create a Diffie-Hellman object. More...

 DH (const Integer &p, const Integer &g)
 Initialize a Diffie-Hellman object. More...

 DH (const Integer &p, const Integer &q, const Integer &g)
 Initialize a Diffie-Hellman object. More...

void Initialize (RandomNumberGenerator &rng, unsigned int modulusBits)
 Creates a Diffie-Hellman object. More...

void Initialize (const Integer &p, const Integer &g)
 Initialize a Diffie-Hellman object. More...

void Initialize (const Integer &p, const Integer &q, const Integer &g)
 Initialize a Diffie-Hellman object. More...

- Public Member Functions inherited from DH_Domain< DL_GroupParameters_GFP_DefaultSafePrime >
 DH_Domain ()
 Construct a Diffie-Hellman domain.

 DH_Domain (const GroupParameters &params)
 Construct a Diffie-Hellman domain. More...

 DH_Domain (BufferedTransformation &bt)
 Construct a Diffie-Hellman domain. More...

 DH_Domain (RandomNumberGenerator &v1, const T2 &v2)
 Create a Diffie-Hellman domain. More...

 DH_Domain (RandomNumberGenerator &v1, const T2 &v2, const T3 &v3)
 Create a Diffie-Hellman domain. More...

 DH_Domain (RandomNumberGenerator &v1, const T2 &v2, const T3 &v3, const T4 &v4)
 Create a Diffie-Hellman domain. More...

 DH_Domain (const T1 &v1, const T2 &v2)
 Construct a Diffie-Hellman domain. More...

 DH_Domain (const T1 &v1, const T2 &v2, const T3 &v3)
 Construct a Diffie-Hellman domain. More...

 DH_Domain (const T1 &v1, const T2 &v2, const T3 &v3, const T4 &v4)
 Construct a Diffie-Hellman domain. More...

const GroupParametersGetGroupParameters () const
 Retrieves the group parameters for this domain. More...

GroupParametersAccessGroupParameters ()
 Retrieves the group parameters for this domain. More...

void GeneratePublicKey (RandomNumberGenerator &rng, const byte *privateKey, byte *publicKey) const
 Generate a public key from a private key in this domain. More...

std::string AlgorithmName () const
 Provides the name of this algorithm. More...

- Public Member Functions inherited from DL_SimpleKeyAgreementDomainBase< DL_GroupParameters_GFP_DefaultSafePrime ::Element >
CryptoParametersAccessCryptoParameters ()
 Retrieves a reference to Crypto Parameters. More...

unsigned int AgreedValueLength () const
 Provides the size of the agreed value. More...

unsigned int PrivateKeyLength () const
 Provides the size of the private key. More...

unsigned int PublicKeyLength () const
 Provides the size of the public key. More...

void GeneratePrivateKey (RandomNumberGenerator &rng, byte *privateKey) const
 Generate private key in this domain. More...

void GeneratePublicKey (RandomNumberGenerator &rng, const byte *privateKey, byte *publicKey) const
 Generate a public key from a private key in this domain. More...

bool Agree (byte *agreedValue, const byte *privateKey, const byte *otherPublicKey, bool validateOtherPublicKey=true) const
 Derive agreed value. More...

const Element & GetGenerator () const
 Retrieves a reference to the group generator. More...

- Public Member Functions inherited from SimpleKeyAgreementDomain
virtual void GenerateKeyPair (RandomNumberGenerator &rng, byte *privateKey, byte *publicKey) const
 Generate a private/public key pair. More...

- Public Member Functions inherited from KeyAgreementAlgorithm
CryptoMaterialAccessMaterial ()
 Retrieves a reference to Crypto Parameters. More...

const CryptoMaterialGetMaterial () const
 Retrieves a reference to Crypto Parameters. More...

virtual const CryptoParametersGetCryptoParameters () const
 Retrieves a reference to Crypto Parameters. More...

- Public Member Functions inherited from AsymmetricAlgorithm
void BERDecode (BufferedTransformation &bt)
 Loads this object from a BufferedTransformation. More...

void DEREncode (BufferedTransformation &bt) const
 Saves this object to a BufferedTransformation. More...

- Public Member Functions inherited from Algorithm
 Algorithm (bool checkSelfTestStatus=true)
 Interface for all crypto algorithms. More...

- Public Member Functions inherited from Clonable
virtual ClonableClone () const
 Copies this object. More...


Additional Inherited Members

- Static Public Member Functions inherited from DH_Domain< DL_GroupParameters_GFP_DefaultSafePrime >
static std::string StaticAlgorithmName ()


Detailed Description

Diffie-Hellman in GF(p)

DH() class is a typedef of DH_Domain(). The documentation that follows does not exist. Rather the documentation was created in response to Issue 328, Diffie-Hellman example code not compiling.

Generally speaking, a DH() object is ephemeral and is intended to execute one instance of the Diffie-Hellman protocol. The private and public key parts are not intended to be set or persisted. Rather, a new set of domain parameters are generated each time an object is created.

Once a DH() object is created, once can retrieve the ephemeral public key for the other party with code similar to the following.

   AutoSeededRandomPool prng;
  Integer p, q, g;
  PrimeAndGenerator pg;
  pg.Generate(1, prng, 512, 511);
  p = pg.Prime();
  q = pg.SubPrime();
  g = pg.Generator();
  DH dh(p, q, g);
  SecByteBlock t1(dh.PrivateKeyLength()), t2(dh.PublicKeyLength());
  dh.GenerateKeyPair(prng, t1, t2);
  Integer k1(t1, t1.size()), k2(t2, t2.size());
  cout << "Private key:\n";
  cout << hex << k1 << endl;
  cout << "Public key:\n";
  cout << hex << k2 << endl;

Output of the program above will be similar to the following.

   $ ./cryptest.exe
  Private key:
  72b45a42371545e9d4880f48589aefh
  Public key:
  45fdb13f97b1840626f0250cec1dba4a23b894100b51fb5d2dd13693d789948f8bfc88f9200014b2
  ba8dd8a6debc471c69ef1e2326c61184a2eca88ec866346bh
See also
Diffie-Hellman on the Crypto++ wiki and Diffie-Hellman in GF(p) with key validation
Since
Crypto++ 1.0

Definition at line 212 of file dh.h.

Constructor & Destructor Documentation

◆ DH() [1/5]

DH::DH ( BufferedTransformation bt)
inline

Initialize a Diffie-Hellman object.

Parameters
btBufferedTransformation with group parameters and options

Definition at line 224 of file dh.h.

◆ DH() [2/5]

DH::DH ( const GroupParameters params)
inline

Initialize a Diffie-Hellman object.

Parameters
paramsgroup parameters and options

Definition at line 228 of file dh.h.

◆ DH() [3/5]

DH::DH ( RandomNumberGenerator rng,
unsigned int  modulusBits
)
inline

Create a Diffie-Hellman object.

Parameters
rnga RandomNumberGenerator derived class
modulusBitsthe size of the modulus, in bits

This function overload of Initialize() creates a new Diffie-Hellman object because it takes a RandomNumberGenerator() as a parameter.

Definition at line 235 of file dh.h.

◆ DH() [4/5]

DH::DH ( const Integer p,
const Integer g
)
inline

Initialize a Diffie-Hellman object.

Parameters
pthe modulus
gthe generator

Definition at line 240 of file dh.h.

◆ DH() [5/5]

DH::DH ( const Integer p,
const Integer q,
const Integer g
)
inline

Initialize a Diffie-Hellman object.

Parameters
pthe modulus
qthe subgroup order
gthe generator

Definition at line 246 of file dh.h.

Member Function Documentation

◆ Initialize() [1/3]

void DH::Initialize ( RandomNumberGenerator rng,
unsigned int  modulusBits
)
inline

Creates a Diffie-Hellman object.

Parameters
rnga RandomNumberGenerator derived class
modulusBitsthe size of the modulus, in bits

This function overload of Initialize() creates a new Diffie-Hellman object because it takes a RandomNumberGenerator() as a parameter.

Definition at line 253 of file dh.h.

◆ Initialize() [2/3]

void DH::Initialize ( const Integer p,
const Integer g
)
inline

Initialize a Diffie-Hellman object.

Parameters
pthe modulus
gthe generator

Definition at line 259 of file dh.h.

◆ Initialize() [3/3]

void DH::Initialize ( const Integer p,
const Integer q,
const Integer g
)
inline

Initialize a Diffie-Hellman object.

Parameters
pthe modulus
qthe subgroup order
gthe generator

Definition at line 266 of file dh.h.


The documentation for this struct was generated from the following file:
