SM3 Class Reference

SM3 hash function. More...

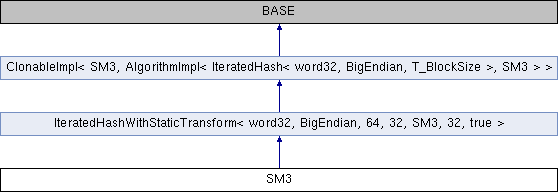

+ Inheritance diagram for SM3:

Static Public Member Functions

static void InitState (HashWordType *state)
 Initialize state array. More...

static void Transform (HashWordType *digest, const HashWordType *data)
 Operate the hash. More...

static const char * StaticAlgorithmName ()
 The algorithm name. More...

- Static Public Member Functions inherited from AlgorithmImpl< IteratedHash< word32, BigEndian, T_BlockSize >, SM3 >
static std::string StaticAlgorithmName ()
 The algorithm name. More...


Additional Inherited Members

- Public Types inherited from IteratedHash< word32, BigEndian, T_BlockSize >
typedef BigEndian ByteOrderClass

typedef word32 HashWordType

- Public Types inherited from IteratedHashBase< word32, HashTransformation >
typedef word32 HashWordType

- Public Member Functions inherited from IteratedHashWithStaticTransform< word32, BigEndian, 64, 32, SM3, 32, true >
unsigned int DigestSize () const
 Provides the digest size of the hash. More...

- Public Member Functions inherited from ClonableImpl< SM3, AlgorithmImpl< IteratedHash< word32, BigEndian, T_BlockSize >, SM3 > >
ClonableClone () const

- Public Member Functions inherited from AlgorithmImpl< IteratedHash< word32, BigEndian, T_BlockSize >, SM3 >
std::string AlgorithmName () const
 The algorithm name. More...

- Public Member Functions inherited from IteratedHash< word32, BigEndian, T_BlockSize >
unsigned int BlockSize () const
 Provides the block size of the hash. More...

ByteOrder GetByteOrder () const
 Provides the byte order of the hash. More...

void CorrectEndianess (HashWordType *out, const HashWordType *in, size_t byteCount)
 Adjusts the byte ordering of the hash. More...

- Public Member Functions inherited from IteratedHashBase< word32, HashTransformation >
 IteratedHashBase ()
 Construct an IteratedHashBase.

unsigned int OptimalBlockSize () const
 Provides the input block size most efficient for this cipher. More...

unsigned int OptimalDataAlignment () const
 Provides input and output data alignment for optimal performance. More...

void Update (const byte *input, size_t length)
 Updates a hash with additional input. More...

byte * CreateUpdateSpace (size_t &size)
 Requests space which can be written into by the caller. More...

void Restart ()
 Restart the hash. More...

void TruncatedFinal (byte *digest, size_t digestSize)
 Computes the hash of the current message. More...

- Public Member Functions inherited from HashTransformation
HashTransformationRef ()
 Provides a reference to this object. More...

virtual void Final (byte *digest)
 Computes the hash of the current message. More...

unsigned int TagSize () const
 Provides the tag size of the hash. More...

virtual void CalculateDigest (byte *digest, const byte *input, size_t length)
 Updates the hash with additional input and computes the hash of the current message. More...

virtual bool Verify (const byte *digest)
 Verifies the hash of the current message. More...

virtual bool VerifyDigest (const byte *digest, const byte *input, size_t length)
 Updates the hash with additional input and verifies the hash of the current message. More...

virtual void CalculateTruncatedDigest (byte *digest, size_t digestSize, const byte *input, size_t length)
 Updates the hash with additional input and computes the hash of the current message. More...

virtual bool TruncatedVerify (const byte *digest, size_t digestLength)
 Verifies the hash of the current message. More...

virtual bool VerifyTruncatedDigest (const byte *digest, size_t digestLength, const byte *input, size_t length)
 Updates the hash with additional input and verifies the hash of the current message. More...

- Public Member Functions inherited from Algorithm
 Algorithm (bool checkSelfTestStatus=true)
 Interface for all crypto algorithms. More...

- Static Public Attributes inherited from IteratedHashWithStaticTransform< word32, BigEndian, 64, 32, SM3, 32, true >
static const int DIGESTSIZE

- Static Public Attributes inherited from IteratedHash< word32, BigEndian, T_BlockSize >
static const int BLOCKSIZE


Detailed Description

SM3 hash function.

SM3 is a hash function designed by Xiaoyun Wang, et al. The hash is part of the Chinese State Cryptography Administration portfolio.

See also
SM3 Hash Function
Since
Crypto++ 6.0

Definition at line 27 of file sm3.h.

Member Function Documentation

◆ InitState()

void SM3::InitState ( HashWordType *  state)
static

Initialize state array.

Parameters
statethe state of the hash

InitState sets a state array to SHA256 initial values

Hashes which derive from IteratedHashWithStaticTransform provide static member functions InitState() and Transform(). External classes, like SEAL and MDC, can initialize state with a user provided key and operate the hash on the data with the user supplied state.

Definition at line 230 of file sm3.cpp.

◆ Transform()

void SM3::Transform ( HashWordType *  digest,
const HashWordType *  data
)
static

Operate the hash.

Parameters
digestthe state of the hash
datathe data to be digested

Transform() operates the hash on data. When the call is invoked digest holds initial or current state. Upon return digest holds the hash or updated state.

Hashes which derive from IteratedHashWithStaticTransform provide static member functions InitState() and Transform(). External classes, like SEAL and MDC, can initialize state with a user provided key and operate the hash on the data with the user supplied state.

Definition at line 240 of file sm3.cpp.

◆ StaticAlgorithmName()

static const char* SM3::StaticAlgorithmName ( )
inlinestatic

The algorithm name.

Returns
C-style string "SM3"

Definition at line 53 of file sm3.h.
