Crypto++  5.6.5
Free C++ class library of cryptographic schemes
Public Member Functions | List of all members
EAX_Base Class Referenceabstract

EAX block cipher base implementation. More...

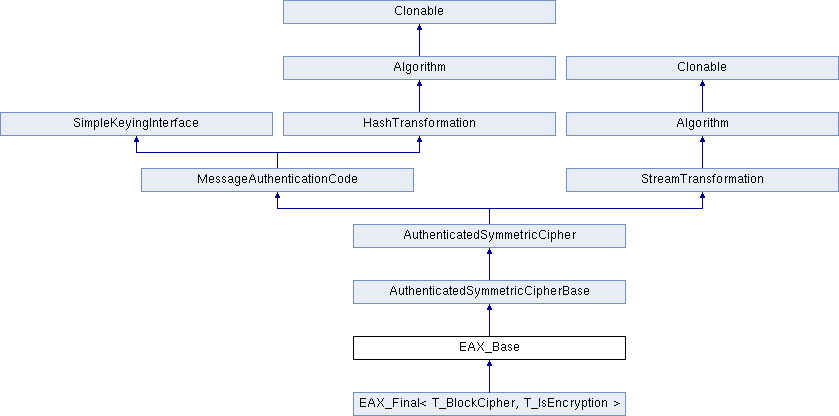

+ Inheritance diagram for EAX_Base:

Public Member Functions

std::string AlgorithmName () const
 Provides the name of this algorithm. More...

size_t MinKeyLength () const
 Returns smallest valid key length. More...

size_t MaxKeyLength () const
 Returns largest valid key length. More...

size_t DefaultKeyLength () const
 Returns default key length. More...

size_t GetValidKeyLength (size_t n) const
 Returns a valid key length for the algorithm. More...

bool IsValidKeyLength (size_t n) const
 Returns whether keylength is a valid key length. More...

unsigned int OptimalDataAlignment () const
 Provides input and output data alignment for optimal performance. More...

IV_Requirement IVRequirement () const
 Minimal requirement for secure IVs. More...

unsigned int IVSize () const
 Returns length of the IV accepted by this object. More...

unsigned int MinIVLength () const
 Provides the minimum size of an IV. More...

unsigned int MaxIVLength () const
 Provides the maximum size of an IV. More...

unsigned int DigestSize () const
 Provides the digest size of the hash. More...

lword MaxHeaderLength () const
 Provides the maximum length of AAD that can be input. More...

lword MaxMessageLength () const
 Provides the maximum length of encrypted data. More...

- Public Member Functions inherited from AuthenticatedSymmetricCipherBase
bool IsRandomAccess () const
 Determines whether the cipher supports random access. More...

bool IsSelfInverting () const
 Determines whether the cipher is self-inverting. More...

void UncheckedSetKey (const byte *key, unsigned int length, const ::NameValuePairs &params)
 Sets the key for this object without performing parameter validation. More...

void SetKey (const byte *userKey, size_t keylength, const NameValuePairs &params)
 Sets or reset the key of this object. More...

void Restart ()
 Restart the hash. More...

void Resynchronize (const byte *iv, int length=-1)
 Resynchronize with an IV. More...

void Update (const byte *input, size_t length)
 Updates a hash with additional input. More...

void ProcessData (byte *outString, const byte *inString, size_t length)
 Encrypt or decrypt an array of bytes. More...

void TruncatedFinal (byte *mac, size_t macSize)
 Computes the hash of the current message. More...

- Public Member Functions inherited from AuthenticatedSymmetricCipher
virtual lword MaxFooterLength () const
 Provides the the maximum length of AAD. More...

virtual bool NeedsPrespecifiedDataLengths () const
 Determines if data lengths must be specified prior to inputting data. More...

void SpecifyDataLengths (lword headerLength, lword messageLength, lword footerLength=0)
 Prespecifies the data lengths. More...

virtual void EncryptAndAuthenticate (byte *ciphertext, byte *mac, size_t macSize, const byte *iv, int ivLength, const byte *header, size_t headerLength, const byte *message, size_t messageLength)
 Encrypts and calculates a MAC in one call. More...

virtual bool DecryptAndVerify (byte *message, const byte *mac, size_t macLength, const byte *iv, int ivLength, const byte *header, size_t headerLength, const byte *ciphertext, size_t ciphertextLength)
 Decrypts and verifies a MAC in one call. More...

- Public Member Functions inherited from SimpleKeyingInterface
void SetKeyWithRounds (const byte *key, size_t length, int rounds)
 Sets or reset the key of this object. More...

void SetKeyWithIV (const byte *key, size_t length, const byte *iv, size_t ivLength)
 Sets or reset the key of this object. More...

void SetKeyWithIV (const byte *key, size_t length, const byte *iv)
 Sets or reset the key of this object. More...

bool IsResynchronizable () const
 Determines if the object can be resynchronized. More...

bool CanUseRandomIVs () const
 Determines if the object can use random IVs. More...

bool CanUsePredictableIVs () const
 Determines if the object can use random but possibly predictable IVs. More...

bool CanUseStructuredIVs () const
 Determines if the object can use structured IVs. More...

unsigned int DefaultIVLength () const
 Provides the default size of an IV. More...

virtual void GetNextIV (RandomNumberGenerator &rng, byte *iv)
 Retrieves a secure IV for the next message. More...

- Public Member Functions inherited from HashTransformation
HashTransformationRef ()
 Provides a reference to this object. More...

virtual byte * CreateUpdateSpace (size_t &size)
 Request space which can be written into by the caller. More...

virtual void Final (byte *digest)
 Computes the hash of the current message. More...

unsigned int TagSize () const
 Provides the tag size of the hash. More...

virtual unsigned int BlockSize () const
 Provides the block size of the compression function. More...

virtual unsigned int OptimalBlockSize () const
 Provides the input block size most efficient for this hash. More...

virtual void CalculateDigest (byte *digest, const byte *input, size_t length)
 Updates the hash with additional input and computes the hash of the current message. More...

virtual bool Verify (const byte *digest)
 Verifies the hash of the current message. More...

virtual bool VerifyDigest (const byte *digest, const byte *input, size_t length)
 Updates the hash with additional input and verifies the hash of the current message. More...

virtual void CalculateTruncatedDigest (byte *digest, size_t digestSize, const byte *input, size_t length)
 Updates the hash with additional input and computes the hash of the current message. More...

virtual bool TruncatedVerify (const byte *digest, size_t digestLength)
 Verifies the hash of the current message. More...

virtual bool VerifyTruncatedDigest (const byte *digest, size_t digestLength, const byte *input, size_t length)
 Updates the hash with additional input and verifies the hash of the current message. More...

- Public Member Functions inherited from Algorithm
 Algorithm (bool checkSelfTestStatus=true)
 Interface for all crypto algorithms. More...

- Public Member Functions inherited from Clonable
virtual ClonableClone () const
 Copies this object. More...

- Public Member Functions inherited from StreamTransformation
StreamTransformationRef ()
 Provides a reference to this object. More...

virtual unsigned int MandatoryBlockSize () const
 Provides the mandatory block size of the cipher. More...

virtual unsigned int OptimalBlockSize () const
 Provides the input block size most efficient for this cipher. More...

virtual unsigned int GetOptimalBlockSizeUsed () const
 Provides the number of bytes used in the current block when processing at optimal block size. More...

virtual void ProcessLastBlock (byte *outString, const byte *inString, size_t length)
 Encrypt or decrypt the last block of data. More...

virtual unsigned int MinLastBlockSize () const
 Provides the size of the last block. More...

void ProcessString (byte *inoutString, size_t length)
 Encrypt or decrypt a string of bytes. More...

void ProcessString (byte *outString, const byte *inString, size_t length)
 Encrypt or decrypt a string of bytes. More...

byte ProcessByte (byte input)
 Encrypt or decrypt a byte. More...

virtual void Seek (lword pos)
 Seek to an absolute position. More...

virtual bool IsForwardTransformation () const =0
 Determines if the cipher is being operated in its forward direction. More...


Additional Inherited Members

- Public Types inherited from SimpleKeyingInterface
enum  IV_Requirement {
  UNIQUE_IV = 0, RANDOM_IV, UNPREDICTABLE_RANDOM_IV, INTERNALLY_GENERATED_IV,
  NOT_RESYNCHRONIZABLE
}
 Secure IVs requirements as enumerated values. More...


Detailed Description

EAX block cipher base implementation.

Base implementation of the AuthenticatedSymmetricCipher interface

Since
Crypto++ 5.6.0

Definition at line 19 of file eax.h.

Member Function Documentation

std::string EAX_Base::AlgorithmName ( ) const
inlinevirtual

Provides the name of this algorithm.

Returns
the standard algorithm name

The standard algorithm name can be a name like AES or AES/GCM. Some algorithms do not have standard names yet. For example, there is no standard algorithm name for Shoup's ECIES.

Implements AuthenticatedSymmetricCipher.

Definition at line 23 of file eax.h.

size_t EAX_Base::MinKeyLength ( ) const
inlinevirtual

Returns smallest valid key length.

Returns
the minimum key length, in bytes

Implements SimpleKeyingInterface.

Definition at line 25 of file eax.h.

size_t EAX_Base::MaxKeyLength ( ) const
inlinevirtual

Returns largest valid key length.

Returns
the maximum key length, in bytes

Implements SimpleKeyingInterface.

Definition at line 27 of file eax.h.

size_t EAX_Base::DefaultKeyLength ( ) const
inlinevirtual

Returns default key length.

Returns
the default (recommended) key length, in bytes

Implements SimpleKeyingInterface.

Definition at line 29 of file eax.h.

size_t EAX_Base::GetValidKeyLength ( size_t  keylength) const
inlinevirtual

Returns a valid key length for the algorithm.

Parameters
keylengththe size of the key, in bytes
Returns
the valid key length, in bytes

keylength is provided in bytes, not bits. If keylength is less than MIN_KEYLENGTH, then the function returns MIN_KEYLENGTH. If keylength is greater than MAX_KEYLENGTH, then the function returns MAX_KEYLENGTH. if If keylength is a multiple of KEYLENGTH_MULTIPLE, then keylength is returned. Otherwise, the function returns a lower multiple of KEYLENGTH_MULTIPLE.

Implements SimpleKeyingInterface.

Definition at line 31 of file eax.h.

bool EAX_Base::IsValidKeyLength ( size_t  keylength) const
inlinevirtual

Returns whether keylength is a valid key length.

Parameters
keylengththe requested keylength
Returns
true if keylength is valid, false otherwise

Internally the function calls GetValidKeyLength()

Reimplemented from SimpleKeyingInterface.

Definition at line 33 of file eax.h.

unsigned int EAX_Base::OptimalDataAlignment ( ) const
inlinevirtual

Provides input and output data alignment for optimal performance.

Returns
the input data alignment that provides optimal performance

Reimplemented from StreamTransformation.

Definition at line 35 of file eax.h.

IV_Requirement EAX_Base::IVRequirement ( ) const
inlinevirtual

Minimal requirement for secure IVs.

Returns
the secure IV requirement of the algorithm

Implements SimpleKeyingInterface.

Definition at line 37 of file eax.h.

unsigned int EAX_Base::IVSize ( ) const
inlinevirtual

Returns length of the IV accepted by this object.

Returns
the size of an IV, in bytes
Exceptions
NotImplemented()if the object does not support resynchronization

The default implementation throws NotImplemented

Reimplemented from SimpleKeyingInterface.

Definition at line 39 of file eax.h.

unsigned int EAX_Base::MinIVLength ( ) const
inlinevirtual

Provides the minimum size of an IV.

Returns
minimal length of IVs accepted by this object, in bytes
Exceptions
NotImplemented()if the object does not support resynchronization

Reimplemented from SimpleKeyingInterface.

Definition at line 41 of file eax.h.

unsigned int EAX_Base::MaxIVLength ( ) const
inlinevirtual

Provides the maximum size of an IV.

Returns
maximal length of IVs accepted by this object, in bytes
Exceptions
NotImplemented()if the object does not support resynchronization

Reimplemented from SimpleKeyingInterface.

Definition at line 43 of file eax.h.

unsigned int EAX_Base::DigestSize ( ) const
inlinevirtual

Provides the digest size of the hash.

Returns
the digest size of the hash.

Implements HashTransformation.

Definition at line 45 of file eax.h.

lword EAX_Base::MaxHeaderLength ( ) const
inlinevirtual

Provides the maximum length of AAD that can be input.

Returns
the maximum length of AAD that can be input before the encrypted data

Implements AuthenticatedSymmetricCipher.

Definition at line 47 of file eax.h.

lword EAX_Base::MaxMessageLength ( ) const
inlinevirtual

Provides the maximum length of encrypted data.

Returns
the maximum length of encrypted data

Implements AuthenticatedSymmetricCipher.

Definition at line 49 of file eax.h.


The documentation for this class was generated from the following files:
