ByteQueue Class Reference

Data structure used to store byte strings. More...

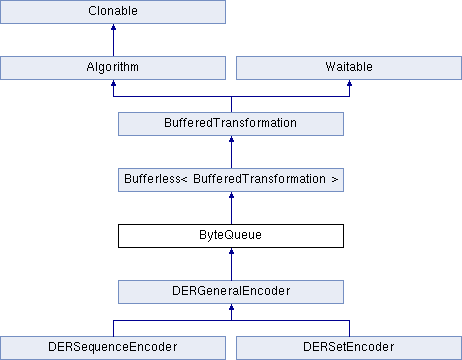

+ Inheritance diagram for ByteQueue:

Classes

class  Walker
 A ByteQueue iterator. More...


Public Member Functions

 ByteQueue (size_t nodeSize=0)
 Construct a ByteQueue. More...

 ByteQueue (const ByteQueue &copy)
 Copy construct a ByteQueue. More...

lword MaxRetrievable () const
 Provides the number of bytes ready for retrieval. More...

bool AnyRetrievable () const
 Determines whether bytes are ready for retrieval. More...

void IsolatedInitialize (const NameValuePairs &parameters)
 Initialize or reinitialize this object, without signal propagation. More...

byteCreatePutSpace (size_t &size)
 Request space which can be written into by the caller. More...

size_t Put2 (const byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes for processing. More...

size_t Get (byte &outByte)
 Retrieve a 8-bit byte. More...

size_t Get (byte *outString, size_t getMax)
 Retrieve a block of bytes. More...

size_t Peek (byte &outByte) const
 Peek a 8-bit byte. More...

size_t Peek (byte *outString, size_t peekMax) const
 Peek a block of bytes. More...

size_t TransferTo2 (BufferedTransformation &target, lword &transferBytes, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer bytes from this object to another BufferedTransformation. More...

size_t CopyRangeTo2 (BufferedTransformation &target, lword &begin, lword end=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true) const
 Copy bytes from this object to another BufferedTransformation. More...

void SetNodeSize (size_t nodeSize)
 Set node size. More...

lword CurrentSize () const
 Determine data size. More...

bool IsEmpty () const
 Determine data availability. More...

void Clear ()
 Empty the queue.

void Unget (byte inByte)
 Insert data in the queue. More...

void Unget (const byte *inString, size_t length)
 Insert data in the queue. More...

const byteSpy (size_t &contiguousSize) const
 Peek data in the queue. More...

void LazyPut (const byte *inString, size_t size)
 Insert data in the queue. More...

void LazyPutModifiable (byte *inString, size_t size)
 Insert data in the queue. More...

void UndoLazyPut (size_t size)
 Remove data from the queue. More...

void FinalizeLazyPut ()
 Insert data in the queue. More...

ByteQueueoperator= (const ByteQueue &rhs)
 Assign contents from another ByteQueue. More...

bool operator== (const ByteQueue &rhs) const
 Bitwise compare two ByteQueue. More...

bool operator!= (const ByteQueue &rhs) const
 Bitwise compare two ByteQueue. More...

byte operator[] (lword index) const
 Retrieve data from the queue. More...

void swap (ByteQueue &rhs)
 Swap contents with another ByteQueue. More...

- Public Member Functions inherited from Bufferless< BufferedTransformation >
bool IsolatedFlush (bool hardFlush, bool blocking)
 Flushes data buffered by this object, without signal propagation. More...

- Public Member Functions inherited from BufferedTransformation
 BufferedTransformation ()
 Construct a BufferedTransformation.

BufferedTransformationRef ()
 Provides a reference to this object. More...

size_t Put (byte inByte, bool blocking=true)
 Input a byte for processing. More...

size_t Put (const byte *inString, size_t length, bool blocking=true)
 Input a byte buffer for processing. More...

size_t PutWord16 (word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 16-bit word for processing. More...

size_t PutWord32 (word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 32-bit word for processing. More...

size_t PutWord64 (word64 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 64-bit word for processing. More...

virtual bool CanModifyInput () const
 Determines whether input can be modified by the callee. More...

size_t PutModifiable (byte *inString, size_t length, bool blocking=true)
 Input multiple bytes that may be modified by callee. More...

bool MessageEnd (int propagation=-1, bool blocking=true)
 Signals the end of messages to the object. More...

size_t PutMessageEnd (const byte *inString, size_t length, int propagation=-1, bool blocking=true)
 Input multiple bytes for processing and signal the end of a message. More...

virtual size_t PutModifiable2 (byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes that may be modified by callee. More...

unsigned int GetMaxWaitObjectCount () const
 Retrieves the maximum number of waitable objects.

void GetWaitObjects (WaitObjectContainer &container, CallStack const &callStack)
 Retrieves waitable objects. More...

virtual bool IsolatedMessageSeriesEnd (bool blocking)
 Marks the end of a series of messages, without signal propagation. More...

virtual void Initialize (const NameValuePairs &parameters=g_nullNameValuePairs, int propagation=-1)
 Initialize or reinitialize this object, with signal propagation. More...

virtual bool Flush (bool hardFlush, int propagation=-1, bool blocking=true)
 Flush buffered input and/or output, with signal propagation. More...

virtual bool MessageSeriesEnd (int propagation=-1, bool blocking=true)
 Marks the end of a series of messages, with signal propagation. More...

virtual void SetAutoSignalPropagation (int propagation)
 Set propagation of automatically generated and transferred signals. More...

virtual int GetAutoSignalPropagation () const
 Retrieve automatic signal propagation value. More...

size_t GetWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 16-bit word. More...

size_t GetWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 32-bit word. More...

size_t GetWord64 (word64 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 64-bit word. More...

size_t PeekWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 16-bit word. More...

size_t PeekWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 32-bit word. More...

size_t PeekWord64 (word64 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 64-bit word. More...

lword TransferTo (BufferedTransformation &target, lword transferMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL)
 move transferMax bytes of the buffered output to target as input More...

virtual lword Skip (lword skipMax=LWORD_MAX)
 Discard skipMax bytes from the output buffer. More...

lword CopyTo (BufferedTransformation &target, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy bytes from this object to another BufferedTransformation. More...

lword CopyRangeTo (BufferedTransformation &target, lword position, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy bytes from this object using an index to another BufferedTransformation. More...

virtual lword TotalBytesRetrievable () const
 Provides the number of bytes ready for retrieval. More...

virtual unsigned int NumberOfMessages () const
 Provides the number of meesages processed by this object. More...

virtual bool AnyMessages () const
 Determines if any messages are available for retrieval. More...

virtual bool GetNextMessage ()
 Start retrieving the next message. More...

virtual unsigned int SkipMessages (unsigned int count=UINT_MAX)
 Skip a number of meessages. More...

unsigned int TransferMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL)
 Transfer messages from this object to another BufferedTransformation. More...

unsigned int CopyMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy messages from this object to another BufferedTransformation. More...

virtual void SkipAll ()
 Skip all messages in the series.

void TransferAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL)
 Transfer all bytes from this object to another BufferedTransformation. More...

void CopyAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL) const
 Copy messages from this object to another BufferedTransformation. More...

virtual bool GetNextMessageSeries ()
 Retrieve the next message in a series. More...

virtual unsigned int NumberOfMessagesInThisSeries () const
 Provides the number of messages in a series. More...

virtual unsigned int NumberOfMessageSeries () const
 Provides the number of messages in a series. More...

size_t TransferMessagesTo2 (BufferedTransformation &target, unsigned int &messageCount, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer messages from this object to another BufferedTransformation. More...

size_t TransferAllTo2 (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer all bytes from this object to another BufferedTransformation. More...

size_t ChannelPut (const std::string &channel, byte inByte, bool blocking=true)
 Input a byte for processing on a channel. More...

size_t ChannelPut (const std::string &channel, const byte *inString, size_t length, bool blocking=true)
 Input a byte buffer for processing on a channel. More...

size_t ChannelPutModifiable (const std::string &channel, byte *inString, size_t length, bool blocking=true)
 Input multiple bytes that may be modified by callee on a channel. More...

size_t ChannelPutWord16 (const std::string &channel, word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 16-bit word for processing on a channel. More...

size_t ChannelPutWord32 (const std::string &channel, word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 32-bit word for processing on a channel. More...

size_t ChannelPutWord64 (const std::string &channel, word64 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 64-bit word for processing on a channel. More...

bool ChannelMessageEnd (const std::string &channel, int propagation=-1, bool blocking=true)
 Signal the end of a message. More...

size_t ChannelPutMessageEnd (const std::string &channel, const byte *inString, size_t length, int propagation=-1, bool blocking=true)
 Input multiple bytes for processing and signal the end of a message. More...

virtual byteChannelCreatePutSpace (const std::string &channel, size_t &size)
 Request space which can be written into by the caller. More...

virtual size_t ChannelPut2 (const std::string &channel, const byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes for processing on a channel. More...

virtual size_t ChannelPutModifiable2 (const std::string &channel, byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes that may be modified by callee on a channel. More...

virtual bool ChannelFlush (const std::string &channel, bool hardFlush, int propagation=-1, bool blocking=true)
 Flush buffered input and/or output on a channel. More...

virtual bool ChannelMessageSeriesEnd (const std::string &channel, int propagation=-1, bool blocking=true)
 Marks the end of a series of messages on a channel. More...

virtual void SetRetrievalChannel (const std::string &channel)
 Sets the default retrieval channel. More...

virtual bool Attachable ()
 Determines whether the object allows attachment. More...

virtual BufferedTransformationAttachedTransformation ()
 Returns the object immediately attached to this object. More...

virtual const BufferedTransformationAttachedTransformation () const
 Returns the object immediately attached to this object. More...

virtual void Detach (BufferedTransformation *newAttachment=NULL)
 Delete the current attachment chain and attach a new one. More...

virtual void Attach (BufferedTransformation *newAttachment)
 Add newAttachment to the end of attachment chain. More...

- Public Member Functions inherited from Algorithm
 Algorithm (bool checkSelfTestStatus=true)
 Interface for all crypto algorithms. More...

virtual std::string AlgorithmName () const
 Provides the name of this algorithm. More...

virtual std::string AlgorithmProvider () const
 Retrieve the provider of this algorithm. More...

- Public Member Functions inherited from Clonable
virtual ClonableClone () const
 Copies this object. More...

- Public Member Functions inherited from Waitable
bool Wait (unsigned long milliseconds, CallStack const &callStack)
 Wait on this object. More...


Friends

class Walker


Detailed Description

Data structure used to store byte strings.

The queue is implemented as a linked list of byte arrays. Each byte array is stored in a ByteQueueNode.

See also
ByteQueue on the Crypto++ wiki.
Since
Crypto++ 2.0

Definition at line 22 of file queue.h.

Constructor & Destructor Documentation

◆ ByteQueue() [1/2]

ByteQueue::ByteQueue ( size_t  nodeSize = 0)

Construct a ByteQueue.

Parameters
nodeSizethe initial node size

Internally, ByteQueue uses a ByteQueueNode to store bytes, and nodeSize determines the size of the ByteQueueNode. A value of 0 indicates the ByteQueueNode should be automatically sized, which means a value of 256 is used.

◆ ByteQueue() [2/2]

ByteQueue::ByteQueue ( const ByteQueue copy)

Copy construct a ByteQueue.

Parameters
copythe other ByteQueue

Member Function Documentation

◆ MaxRetrievable()

lword ByteQueue::MaxRetrievable ( ) const
inlinevirtual

Provides the number of bytes ready for retrieval.

Returns
the number of bytes ready for retrieval

The number of bytes available are dependent on the source. If an exact value is available, then the exact value is returned. The exact value can include 0 if the source is exhausted.

Some stream-based sources do not allow seeking() on the underlying stream, such as some FileSource(). If the stream does not allow seeking() then MaxRetrievable() returns LWORD_MAX to indicate there are still bytes to be retrieved.

Reimplemented from BufferedTransformation.

Definition at line 40 of file queue.h.

◆ AnyRetrievable()

bool ByteQueue::AnyRetrievable ( ) const
inlinevirtual

Determines whether bytes are ready for retrieval.

Returns
true if bytes are available for retrieval, false otherwise

Reimplemented from BufferedTransformation.

Definition at line 42 of file queue.h.

◆ IsolatedInitialize()

void ByteQueue::IsolatedInitialize ( const NameValuePairs parameters)
virtual

Initialize or reinitialize this object, without signal propagation.

Parameters
parametersa set of NameValuePairs to initialize this object
Exceptions
NotImplemented

IsolatedInitialize() is used to initialize or reinitialize an object using a variable number of arbitrarily typed arguments. The function avoids the need for multiple constructors providing all possible combintations of configurable parameters.

IsolatedInitialize() does not call Initialize() on attached transformations. If initialization should be propagated, then use the Initialize() function.

If a derived class does not override IsolatedInitialize(), then the base class throws NotImplemented.

Reimplemented from BufferedTransformation.

◆ CreatePutSpace()

byte* ByteQueue::CreatePutSpace ( size_t &  size)
virtual

Request space which can be written into by the caller.

Parameters
sizethe requested size of the buffer
Returns
byte pointer to the space to input data

The purpose of this method is to help avoid extra memory allocations.

size is an IN and OUT parameter and used as a hint. When the call is made, size is the requested size of the buffer. When the call returns, size is the size of the array returned to the caller.

The base class implementation sets size to 0 and returns NULL.

Note
Some objects, like ArraySink, cannot create a space because its fixed. In the case of an ArraySink, the pointer to the array is returned and the size is remaining size.

Reimplemented from BufferedTransformation.

◆ Put2()

size_t ByteQueue::Put2 ( const byte inString,
size_t  length,
int  messageEnd,
bool  blocking
)
virtual

Input multiple bytes for processing.

Parameters
inStringthe byte buffer to process
lengththe size of the string, in bytes
messageEndmeans how many filters to signal MessageEnd() to, including this one
blockingspecifies whether the object should block when processing input
Returns
the number of bytes that remain to be processed (i.e., bytes not processed). 0 indicates all bytes were processed.

Derived classes must implement Put2().

Implements BufferedTransformation.

◆ Get() [1/2]

size_t ByteQueue::Get ( byte outByte)
virtual

Retrieve a 8-bit byte.

Parameters
outBytethe 8-bit value to be retrieved
Returns
the number of bytes consumed during the call.

Use the return value of Get to detect short reads.

Reimplemented from BufferedTransformation.

◆ Get() [2/2]

size_t ByteQueue::Get ( byte outString,
size_t  getMax
)
virtual

Retrieve a block of bytes.

Parameters
outStringa block of bytes
getMaxthe number of bytes to Get
Returns
the number of bytes consumed during the call.

Use the return value of Get to detect short reads.

Reimplemented from BufferedTransformation.

◆ Peek() [1/2]

size_t ByteQueue::Peek ( byte outByte) const
virtual

Peek a 8-bit byte.

Parameters
outBytethe 8-bit value to be retrieved
Returns
the number of bytes read during the call.

Peek does not remove bytes from the object. Use the return value of Get() to detect short reads.

Reimplemented from BufferedTransformation.

◆ Peek() [2/2]

size_t ByteQueue::Peek ( byte outString,
size_t  peekMax
) const
virtual

Peek a block of bytes.

Parameters
outStringa block of bytes
peekMaxthe number of bytes to Peek
Returns
the number of bytes read during the call.

Peek does not remove bytes from the object. Use the return value of Peek() to detect short reads.

Reimplemented from BufferedTransformation.

◆ TransferTo2()

size_t ByteQueue::TransferTo2 ( BufferedTransformation target,
lword byteCount,
const std::string &  channel = DEFAULT_CHANNEL,
bool  blocking = true
)
virtual

Transfer bytes from this object to another BufferedTransformation.

Parameters
targetthe destination BufferedTransformation
byteCountthe number of bytes to transfer
channelthe channel on which the transfer should occur
blockingspecifies whether the object should block when processing input
Returns
the number of bytes that remain in the transfer block (i.e., bytes not transferred)

TransferTo2() removes bytes from this object and moves them to the destination. Transfer begins at the index position in the current stream, and not from an absolute position in the stream.

byteCount is an IN and OUT parameter. When the call is made, byteCount is the requested size of the transfer. When the call returns, byteCount is the number of bytes that were transferred.

Implements BufferedTransformation.

◆ CopyRangeTo2()

size_t ByteQueue::CopyRangeTo2 ( BufferedTransformation target,
lword begin,
lword  end = LWORD_MAX,
const std::string &  channel = DEFAULT_CHANNEL,
bool  blocking = true
) const
virtual

Copy bytes from this object to another BufferedTransformation.

Parameters
targetthe destination BufferedTransformation
beginthe 0-based index of the first byte to copy in the stream
endthe 0-based index of the last byte to copy in the stream
channelthe channel on which the transfer should occur
blockingspecifies whether the object should block when processing input
Returns
the number of bytes that remain in the copy block (i.e., bytes not copied)

CopyRangeTo2 copies bytes from this object to the destination. The bytes are not removed from this object. Copying begins at the index position in the current stream, and not from an absolute position in the stream.

begin is an IN and OUT parameter. When the call is made, begin is the starting position of the copy. When the call returns, begin is the position of the first byte that was not copied (which may be different than end). begin can be used for subsequent calls to CopyRangeTo2().

Implements BufferedTransformation.

◆ SetNodeSize()

void ByteQueue::SetNodeSize ( size_t  nodeSize)

Set node size.

Parameters
nodeSizethe new node size, in bytes

The default node size is 256.

◆ CurrentSize()

lword ByteQueue::CurrentSize ( ) const

Determine data size.

Returns
the data size, in bytes

◆ IsEmpty()

bool ByteQueue::IsEmpty ( ) const

Determine data availability.

Returns
true if the ByteQueue has data, false otherwise

◆ Unget() [1/2]

void ByteQueue::Unget ( byte  inByte)

Insert data in the queue.

Parameters
inBytea byte to insert

Unget() inserts a byte at the head of the queue

◆ Unget() [2/2]

void ByteQueue::Unget ( const byte inString,
size_t  length
)

Insert data in the queue.

Parameters
inStringa byte array to insert
lengththe size of the byte array

Unget() inserts a byte array at the head of the queue

◆ Spy()

const byte* ByteQueue::Spy ( size_t &  contiguousSize) const

Peek data in the queue.

Parameters
contiguousSizethe size of the data

Spy() peeks at data at the head of the queue. Spy() does not remove data from the queue.

The data's size is returned in contiguousSize. Spy() returns the size of the first byte array in the list. The entire data may be larger since the queue is a linked list of byte arrays.

◆ LazyPut()

void ByteQueue::LazyPut ( const byte inString,
size_t  size
)

Insert data in the queue.

Parameters
inStringa byte array to insert
sizethe length of the byte array

LazyPut() inserts a byte array at the tail of the queue. The data may not be copied at this point. Rather, the pointer and size to external data are recorded.

Another call to Put() or LazyPut() will force the data to be copied. When lazy puts are used, the data is copied when FinalizeLazyPut() is called.

See also
LazyPutter

◆ LazyPutModifiable()

void ByteQueue::LazyPutModifiable ( byte inString,
size_t  size
)

Insert data in the queue.

Parameters
inStringa byte array to insert
sizethe length of the byte array

LazyPut() inserts a byte array at the tail of the queue. The data may not be copied at this point. Rather, the pointer and size to external data are recorded.

Another call to Put() or LazyPut() will force the data to be copied. When lazy puts are used, the data is copied when FinalizeLazyPut() is called.

See also
LazyPutter

◆ UndoLazyPut()

void ByteQueue::UndoLazyPut ( size_t  size)

Remove data from the queue.

Parameters
sizethe length of the data
Exceptions
InvalidArgumentif there is no lazy data in the queue or if size is larger than the lazy string

UndoLazyPut() truncates data inserted using LazyPut() by modifying size.

See also
LazyPutter

◆ FinalizeLazyPut()

void ByteQueue::FinalizeLazyPut ( )

Insert data in the queue.

FinalizeLazyPut() copies external data inserted using LazyPut() or LazyPutModifiable() into the tail of the queue.

See also
LazyPutter

◆ operator=()

ByteQueue& ByteQueue::operator= ( const ByteQueue rhs)

Assign contents from another ByteQueue.

Parameters
rhsthe other ByteQueue
Returns
reference to this ByteQueue

◆ operator==()

bool ByteQueue::operator== ( const ByteQueue rhs) const

Bitwise compare two ByteQueue.

Parameters
rhsthe other ByteQueue
Returns
true if the size and bits are equal, false otherwise

operator==() walks each ByteQueue comparing bytes in each queue. operator==() is not constant time.

◆ operator!=()

bool ByteQueue::operator!= ( const ByteQueue rhs) const
inline

Bitwise compare two ByteQueue.

Parameters
rhsthe other ByteQueue
Returns
true if the size and bits are not equal, false otherwise

operator!=() is implemented in terms of operator==(). operator==() is not constant time.

Definition at line 151 of file queue.h.

◆ operator[]()

byte ByteQueue::operator[] ( lword  index) const

Retrieve data from the queue.

Parameters
indexof byte to retrieve
Returns
byte at the specified index

operator[]() does not perform bounds checking.

◆ swap()

void ByteQueue::swap ( ByteQueue rhs)

Swap contents with another ByteQueue.

Parameters
rhsthe other ByteQueue

The documentation for this class was generated from the following file:
