Crypto++  8.8
Free C++ class library of cryptographic schemes
Public Member Functions | List of all members
Source Class Referenceabstract

Implementation of BufferedTransformation's attachment interface. More...

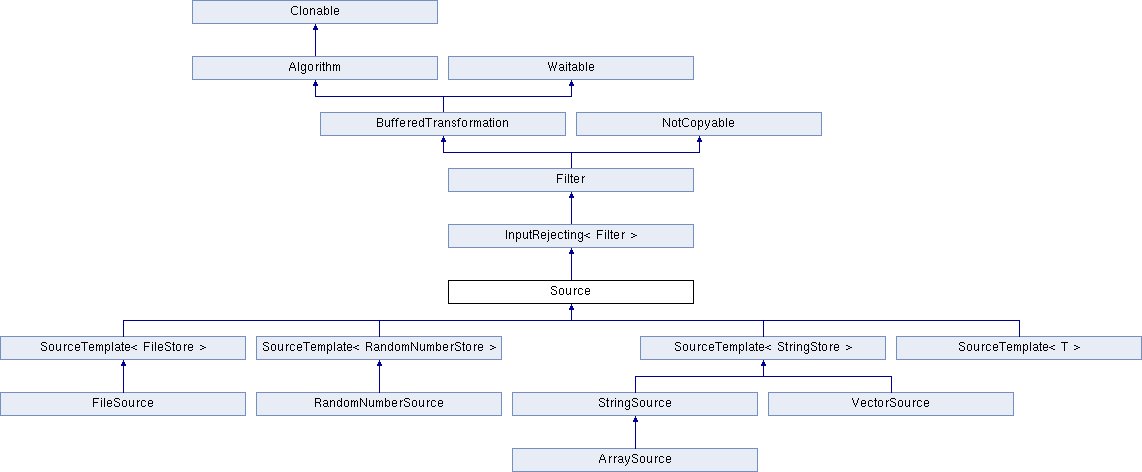

+ Inheritance diagram for Source:

Public Member Functions

 Source (BufferedTransformation *attachment=NULL)
 Construct a Source. More...

- Public Member Functions inherited from InputRejecting< Filter >
size_t Put2 (const byte *inString, size_t length, int messageEnd, bool blocking)
 Input a byte array for processing. More...

bool IsolatedFlush (bool hardFlush, bool blocking)
 Flushes data buffered by this object, without signal propagation. More...

bool IsolatedMessageSeriesEnd (bool blocking)
 Marks the end of a series of messages, without signal propagation. More...

size_t ChannelPut2 (const std::string &channel, const byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes for processing on a channel. More...

bool ChannelMessageSeriesEnd (const std::string &channel, int messageEnd, bool blocking)
 Marks the end of a series of messages on a channel. More...

- Public Member Functions inherited from Filter
 Filter (BufferedTransformation *attachment=NULL)
 Construct a Filter. More...

bool Attachable ()
 Determine if attachable. More...

BufferedTransformationAttachedTransformation ()
 Retrieve attached transformation. More...

const BufferedTransformationAttachedTransformation () const
 Retrieve attached transformation. More...

void Detach (BufferedTransformation *newAttachment=NULL)
 Replace an attached transformation. More...

size_t TransferTo2 (BufferedTransformation &target, lword &transferBytes, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer bytes from this object to another BufferedTransformation. More...

size_t CopyRangeTo2 (BufferedTransformation &target, lword &begin, lword end=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true) const
 Copy bytes from this object to another BufferedTransformation. More...

void Initialize (const NameValuePairs &parameters=g_nullNameValuePairs, int propagation=-1)
 Initialize or reinitialize this object, with signal propagation. More...

bool Flush (bool hardFlush, int propagation=-1, bool blocking=true)
 Flush buffered input and/or output, with signal propagation. More...

bool MessageSeriesEnd (int propagation=-1, bool blocking=true)
 Marks the end of a series of messages, with signal propagation. More...

- Public Member Functions inherited from BufferedTransformation
 BufferedTransformation ()
 Construct a BufferedTransformation.

BufferedTransformationRef ()
 Provides a reference to this object. More...

virtual void Attach (BufferedTransformation *newAttachment)
 Add newAttachment to the end of attachment chain. More...

size_t Put (byte inByte, bool blocking=true)
 Input a byte for processing. More...

size_t Put (const byte *inString, size_t length, bool blocking=true)
 Input a byte buffer for processing. More...

size_t PutWord16 (word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 16-bit word for processing. More...

size_t PutWord32 (word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 32-bit word for processing. More...

size_t PutWord64 (word64 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 64-bit word for processing. More...

virtual byteCreatePutSpace (size_t &size)
 Request space which can be written into by the caller. More...

virtual bool CanModifyInput () const
 Determines whether input can be modified by the callee. More...

size_t PutModifiable (byte *inString, size_t length, bool blocking=true)
 Input multiple bytes that may be modified by callee. More...

bool MessageEnd (int propagation=-1, bool blocking=true)
 Signals the end of messages to the object. More...

size_t PutMessageEnd (const byte *inString, size_t length, int propagation=-1, bool blocking=true)
 Input multiple bytes for processing and signal the end of a message. More...

virtual size_t PutModifiable2 (byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes that may be modified by callee. More...

unsigned int GetMaxWaitObjectCount () const
 Retrieves the maximum number of waitable objects.

void GetWaitObjects (WaitObjectContainer &container, CallStack const &callStack)
 Retrieves waitable objects. More...

virtual void IsolatedInitialize (const NameValuePairs &parameters)
 Initialize or reinitialize this object, without signal propagation. More...

virtual void SetAutoSignalPropagation (int propagation)
 Set propagation of automatically generated and transferred signals. More...

virtual int GetAutoSignalPropagation () const
 Retrieve automatic signal propagation value. More...

virtual lword MaxRetrievable () const
 Provides the number of bytes ready for retrieval. More...

virtual bool AnyRetrievable () const
 Determines whether bytes are ready for retrieval. More...

virtual size_t Get (byte &outByte)
 Retrieve a 8-bit byte. More...

virtual size_t Get (byte *outString, size_t getMax)
 Retrieve a block of bytes. More...

virtual size_t Peek (byte &outByte) const
 Peek a 8-bit byte. More...

virtual size_t Peek (byte *outString, size_t peekMax) const
 Peek a block of bytes. More...

size_t GetWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 16-bit word. More...

size_t GetWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 32-bit word. More...

size_t GetWord64 (word64 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 64-bit word. More...

size_t PeekWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 16-bit word. More...

size_t PeekWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 32-bit word. More...

size_t PeekWord64 (word64 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 64-bit word. More...

lword TransferTo (BufferedTransformation &target, lword transferMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL)
 move transferMax bytes of the buffered output to target as input More...

virtual lword Skip (lword skipMax=LWORD_MAX)
 Discard skipMax bytes from the output buffer. More...

lword CopyTo (BufferedTransformation &target, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy bytes from this object to another BufferedTransformation. More...

lword CopyRangeTo (BufferedTransformation &target, lword position, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy bytes from this object using an index to another BufferedTransformation. More...

virtual lword TotalBytesRetrievable () const
 Provides the number of bytes ready for retrieval. More...

virtual unsigned int NumberOfMessages () const
 Provides the number of meesages processed by this object. More...

virtual bool AnyMessages () const
 Determines if any messages are available for retrieval. More...

virtual bool GetNextMessage ()
 Start retrieving the next message. More...

virtual unsigned int SkipMessages (unsigned int count=UINT_MAX)
 Skip a number of meessages. More...

unsigned int TransferMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL)
 Transfer messages from this object to another BufferedTransformation. More...

unsigned int CopyMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy messages from this object to another BufferedTransformation. More...

virtual void SkipAll ()
 Skip all messages in the series.

void TransferAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL)
 Transfer all bytes from this object to another BufferedTransformation. More...

void CopyAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL) const
 Copy messages from this object to another BufferedTransformation. More...

virtual bool GetNextMessageSeries ()
 Retrieve the next message in a series. More...

virtual unsigned int NumberOfMessagesInThisSeries () const
 Provides the number of messages in a series. More...

virtual unsigned int NumberOfMessageSeries () const
 Provides the number of messages in a series. More...

size_t TransferMessagesTo2 (BufferedTransformation &target, unsigned int &messageCount, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer messages from this object to another BufferedTransformation. More...

size_t TransferAllTo2 (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer all bytes from this object to another BufferedTransformation. More...

size_t ChannelPut (const std::string &channel, byte inByte, bool blocking=true)
 Input a byte for processing on a channel. More...

size_t ChannelPut (const std::string &channel, const byte *inString, size_t length, bool blocking=true)
 Input a byte buffer for processing on a channel. More...

size_t ChannelPutModifiable (const std::string &channel, byte *inString, size_t length, bool blocking=true)
 Input multiple bytes that may be modified by callee on a channel. More...

size_t ChannelPutWord16 (const std::string &channel, word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 16-bit word for processing on a channel. More...

size_t ChannelPutWord32 (const std::string &channel, word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 32-bit word for processing on a channel. More...

size_t ChannelPutWord64 (const std::string &channel, word64 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 64-bit word for processing on a channel. More...

bool ChannelMessageEnd (const std::string &channel, int propagation=-1, bool blocking=true)
 Signal the end of a message. More...

size_t ChannelPutMessageEnd (const std::string &channel, const byte *inString, size_t length, int propagation=-1, bool blocking=true)
 Input multiple bytes for processing and signal the end of a message. More...

virtual byteChannelCreatePutSpace (const std::string &channel, size_t &size)
 Request space which can be written into by the caller. More...

virtual size_t ChannelPutModifiable2 (const std::string &channel, byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes that may be modified by callee on a channel. More...

virtual bool ChannelFlush (const std::string &channel, bool hardFlush, int propagation=-1, bool blocking=true)
 Flush buffered input and/or output on a channel. More...

virtual void SetRetrievalChannel (const std::string &channel)
 Sets the default retrieval channel. More...

- Public Member Functions inherited from Algorithm
 Algorithm (bool checkSelfTestStatus=true)
 Interface for all crypto algorithms. More...

virtual std::string AlgorithmName () const
 Provides the name of this algorithm. More...

virtual std::string AlgorithmProvider () const
 Retrieve the provider of this algorithm. More...

- Public Member Functions inherited from Clonable
virtual ClonableClone () const
 Copies this object. More...

- Public Member Functions inherited from Waitable
bool Wait (unsigned long milliseconds, CallStack const &callStack)
 Wait on this object. More...


PIPELINE

lword Pump (lword pumpMax=...)
 Pump data to attached transformation. More...

unsigned int PumpMessages (unsigned int count=UINT_MAX)
 Pump messages to attached transformation. More...

void PumpAll ()
 Pump all data to attached transformation. More...

virtual size_t Pump2 (lword &byteCount, bool blocking=true)=0
 Pump data to attached transformation. More...

virtual size_t PumpMessages2 (unsigned int &messageCount, bool blocking=true)=0
 Pump messages to attached transformation. More...

virtual size_t PumpAll2 (bool blocking=true)
 Pump all data to attached transformation. More...

virtual bool SourceExhausted () const =0
 Determines if the Source is exhausted. More...


Detailed Description

Implementation of BufferedTransformation's attachment interface.

Source is a cornerstone of the Pipeline trinitiy. Data flows from Sources, through Filters, and then terminates in Sinks. The difference between a Source and Filter is a Source pumps data, while a Filter does not. The difference between a Filter and a Sink is a Filter allows an attached transformation, while a Sink does not.

See the discussion of BufferedTransformation in cryptlib.h for more details.

See also
Store and SourceTemplate
Since
Crypto++ 1.0

Definition at line 1344 of file filters.h.

Constructor & Destructor Documentation

◆ Source()

Source::Source ( BufferedTransformation attachment = NULL)
inline

Construct a Source.

Parameters
attachmentan optional attached transformation

Definition at line 1351 of file filters.h.

Member Function Documentation

◆ Pump()

lword Source::Pump ( lword  pumpMax = ...)
inline

Pump data to attached transformation.

Parameters
pumpMaxthe maximum number of bytes to pump
Returns
the number of bytes that remain to be processed (i.e., bytes not processed). 0 indicates all bytes were processed.

Internally, Pump() calls Pump2().

Note
pumpMax is a lword, which is a 64-bit value that typically uses LWORD_MAX. The default argument is SIZE_MAX, and it can be 32-bits or 64-bits.
See also
Pump2, PumpAll, AnyRetrievable, MaxRetrievable

Definition at line 1366 of file filters.h.

◆ PumpMessages()

unsigned int Source::PumpMessages ( unsigned int  count = UINT_MAX)
inline

Pump messages to attached transformation.

Parameters
countthe maximum number of messages to pump
Returns
TODO

Internally, PumpMessages() calls PumpMessages2().

Definition at line 1373 of file filters.h.

◆ PumpAll()

void Source::PumpAll ( )
inline

Pump all data to attached transformation.

Pumps all data to the attached transformation and signal the end of the current message. To avoid the MessageEnd() signal call Pump(LWORD_MAX) or Pump2(LWORD_MAX, bool).

Internally, PumpAll() calls PumpAll2(), which calls PumpMessages().

See also
Pump, Pump2, AnyRetrievable, MaxRetrievable

Definition at line 1382 of file filters.h.

◆ Pump2()

virtual size_t Source::Pump2 ( lword byteCount,
bool  blocking = true
)
pure virtual

Pump data to attached transformation.

Parameters
byteCountthe maximum number of bytes to pump
blockingspecifies whether the object should block when processing input
Returns
the number of bytes that remain to be processed (i.e., bytes not processed). 0 indicates all bytes were processed.

byteCount is an IN and OUT parameter. When the call is made, byteCount is the requested size of the pump. When the call returns, byteCount is the number of bytes that were pumped.

See also
Pump, PumpAll, AnyRetrievable, MaxRetrievable

Implemented in SourceTemplate< T >, SourceTemplate< FileStore >, SourceTemplate< RandomNumberStore >, and SourceTemplate< StringStore >.

◆ PumpMessages2()

virtual size_t Source::PumpMessages2 ( unsigned int &  messageCount,
bool  blocking = true
)
pure virtual

Pump messages to attached transformation.

Parameters
messageCountthe maximum number of messages to pump
blockingspecifies whether the object should block when processing input

messageCount is an IN and OUT parameter.

Implemented in SourceTemplate< T >, SourceTemplate< FileStore >, SourceTemplate< RandomNumberStore >, and SourceTemplate< StringStore >.

◆ PumpAll2()

virtual size_t Source::PumpAll2 ( bool  blocking = true)
virtual

Pump all data to attached transformation.

Parameters
blockingspecifies whether the object should block when processing input
Returns
the number of bytes that remain to be processed (i.e., bytes not processed). 0 indicates all bytes were processed.
See also
Pump, Pump2, AnyRetrievable, MaxRetrievable

Reimplemented in SourceTemplate< T >, SourceTemplate< FileStore >, SourceTemplate< RandomNumberStore >, and SourceTemplate< StringStore >.

◆ SourceExhausted()

virtual bool Source::SourceExhausted ( ) const
pure virtual

Determines if the Source is exhausted.

Returns
true if the source has been exhausted

Implemented in SourceTemplate< T >, SourceTemplate< FileStore >, SourceTemplate< RandomNumberStore >, and SourceTemplate< StringStore >.


The documentation for this class was generated from the following file:
