Deflator Class Reference

DEFLATE compressor (RFC 1951) More...

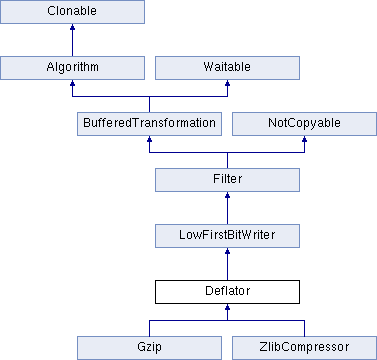

+ Inheritance diagram for Deflator:

Public Types

enum  { MIN_DEFLATE_LEVEL = 0, DEFAULT_DEFLATE_LEVEL = 6, MAX_DEFLATE_LEVEL = 9 }
 Deflate level as enumerated values. More...

enum  { MIN_LOG2_WINDOW_SIZE = 9, DEFAULT_LOG2_WINDOW_SIZE = 15, MAX_LOG2_WINDOW_SIZE = 15 }
 Windows size as enumerated values. More...


Public Member Functions

 Deflator (BufferedTransformation *attachment=NULL, int deflateLevel=DEFAULT_DEFLATE_LEVEL, int log2WindowSize=DEFAULT_LOG2_WINDOW_SIZE, bool detectUncompressible=true)
 Construct a Deflator compressor. More...

 Deflator (const NameValuePairs &parameters, BufferedTransformation *attachment=NULL)
 Construct a Deflator compressor. More...

void SetDeflateLevel (int deflateLevel)
 Sets the deflation level. More...

int GetDeflateLevel () const
 Retrieves the deflation level. More...

int GetLog2WindowSize () const
 Retrieves the window size. More...

void IsolatedInitialize (const NameValuePairs &parameters)
 Initialize or reinitialize this object, without signal propagation. More...

size_t Put2 (const byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes for processing. More...

bool IsolatedFlush (bool hardFlush, bool blocking)
 Flushes data buffered by this object, without signal propagation. More...

- Public Member Functions inherited from LowFirstBitWriter
 LowFirstBitWriter (BufferedTransformation *attachment)
 Construct a LowFirstBitWriter. More...

void PutBits (unsigned long value, unsigned int length)

void FlushBitBuffer ()

void ClearBitBuffer ()

void StartCounting ()

unsigned long FinishCounting ()

- Public Member Functions inherited from Filter
size_t TransferTo2 (BufferedTransformation &target, lword &transferBytes, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer bytes from this object to another BufferedTransformation. More...

size_t CopyRangeTo2 (BufferedTransformation &target, lword &begin, lword end=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true) const
 Copy bytes from this object to another BufferedTransformation. More...

void Initialize (const NameValuePairs &parameters=g_nullNameValuePairs, int propagation=-1)
 Initialize or reinitialize this object, with signal propagation. More...

bool Flush (bool hardFlush, int propagation=-1, bool blocking=true)
 Flush buffered input and/or output, with signal propagation. More...

bool MessageSeriesEnd (int propagation=-1, bool blocking=true)
 Marks the end of a series of messages, with signal propagation. More...

 Filter (BufferedTransformation *attachment=NULL)
 Construct a Filter. More...

bool Attachable ()
 Determine if attachable. More...

BufferedTransformationAttachedTransformation ()
 Retrieve attached transformation. More...

const BufferedTransformationAttachedTransformation () const
 Retrieve attached transformation. More...

void Detach (BufferedTransformation *newAttachment=NULL)
 Replace an attached transformation. More...

- Public Member Functions inherited from BufferedTransformation
 BufferedTransformation ()
 Construct a BufferedTransformation.

BufferedTransformationRef ()
 Provides a reference to this object. More...

size_t Put (byte inByte, bool blocking=true)
 Input a byte for processing. More...

size_t Put (const byte *inString, size_t length, bool blocking=true)
 Input a byte buffer for processing. More...

size_t PutWord16 (word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 16-bit word for processing. More...

size_t PutWord32 (word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 32-bit word for processing. More...

virtual byte * CreatePutSpace (size_t &size)
 Request space which can be written into by the caller. More...

virtual bool CanModifyInput () const
 Determines whether input can be modifed by the callee. More...

size_t PutModifiable (byte *inString, size_t length, bool blocking=true)
 Input multiple bytes that may be modified by callee. More...

bool MessageEnd (int propagation=-1, bool blocking=true)
 Signals the end of messages to the object. More...

size_t PutMessageEnd (const byte *inString, size_t length, int propagation=-1, bool blocking=true)
 Input multiple bytes for processing and signal the end of a message. More...

virtual size_t PutModifiable2 (byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes that may be modified by callee. More...

unsigned int GetMaxWaitObjectCount () const
 Retrieves the maximum number of waitable objects.

void GetWaitObjects (WaitObjectContainer &container, CallStack const &callStack)
 Retrieves waitable objects. More...

virtual bool IsolatedMessageSeriesEnd (bool blocking)
 Marks the end of a series of messages, without signal propagation. More...

virtual void SetAutoSignalPropagation (int propagation)
 Set propagation of automatically generated and transferred signals. More...

virtual int GetAutoSignalPropagation () const
 Retrieve automatic signal propagation value. More...

virtual lword MaxRetrievable () const
 Provides the number of bytes ready for retrieval. More...

virtual bool AnyRetrievable () const
 Determines whether bytes are ready for retrieval. More...

virtual size_t Get (byte &outByte)
 Retrieve a 8-bit byte. More...

virtual size_t Get (byte *outString, size_t getMax)
 Retrieve a block of bytes. More...

virtual size_t Peek (byte &outByte) const
 Peek a 8-bit byte. More...

virtual size_t Peek (byte *outString, size_t peekMax) const
 Peek a block of bytes. More...

size_t GetWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 16-bit word. More...

size_t GetWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 Retrieve a 32-bit word. More...

size_t PeekWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 16-bit word. More...

size_t PeekWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 Peek a 32-bit word. More...

lword TransferTo (BufferedTransformation &target, lword transferMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL)
 move transferMax bytes of the buffered output to target as input More...

virtual lword Skip (lword skipMax=LWORD_MAX)
 Discard skipMax bytes from the output buffer. More...

lword CopyTo (BufferedTransformation &target, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 copy copyMax bytes of the buffered output to target as input More...

lword CopyRangeTo (BufferedTransformation &target, lword position, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy bytes from this object using an index to another BufferedTransformation. More...

virtual lword TotalBytesRetrievable () const
 Provides the number of bytes ready for retrieval. More...

virtual unsigned int NumberOfMessages () const
 Provides the number of meesages processed by this object. More...

virtual bool AnyMessages () const
 Determines if any messages are available for retrieval. More...

virtual bool GetNextMessage ()
 Start retrieving the next message. More...

virtual unsigned int SkipMessages (unsigned int count=UINT_MAX)
 Skip a number of meessages. More...

unsigned int TransferMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL)
 Transfer messages from this object to another BufferedTransformation. More...

unsigned int CopyMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL) const
 Copy messages from this object to another BufferedTransformation. More...

virtual void SkipAll ()
 Skip all messages in the series.

void TransferAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL)
 Transfer all bytes from this object to another BufferedTransformation. More...

void CopyAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL) const
 Copy messages from this object to another BufferedTransformation. More...

virtual bool GetNextMessageSeries ()
 Retrieve the next message in a series. More...

virtual unsigned int NumberOfMessagesInThisSeries () const
 Provides the number of messages in a series. More...

virtual unsigned int NumberOfMessageSeries () const
 Provides the number of messages in a series. More...

size_t TransferMessagesTo2 (BufferedTransformation &target, unsigned int &messageCount, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer messages from this object to another BufferedTransformation. More...

size_t TransferAllTo2 (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
 Transfer all bytes from this object to another BufferedTransformation. More...

size_t ChannelPut (const std::string &channel, byte inByte, bool blocking=true)
 Input a byte for processing on a channel. More...

size_t ChannelPut (const std::string &channel, const byte *inString, size_t length, bool blocking=true)
 Input a byte buffer for processing on a channel. More...

size_t ChannelPutModifiable (const std::string &channel, byte *inString, size_t length, bool blocking=true)
 Input multiple bytes that may be modified by callee on a channel. More...

size_t ChannelPutWord16 (const std::string &channel, word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 16-bit word for processing on a channel. More...

size_t ChannelPutWord32 (const std::string &channel, word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 Input a 32-bit word for processing on a channel. More...

bool ChannelMessageEnd (const std::string &channel, int propagation=-1, bool blocking=true)
 Signal the end of a message. More...

size_t ChannelPutMessageEnd (const std::string &channel, const byte *inString, size_t length, int propagation=-1, bool blocking=true)
 Input multiple bytes for processing and signal the end of a message. More...

virtual byte * ChannelCreatePutSpace (const std::string &channel, size_t &size)
 Request space which can be written into by the caller. More...

virtual size_t ChannelPut2 (const std::string &channel, const byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes for processing on a channel. More...

virtual size_t ChannelPutModifiable2 (const std::string &channel, byte *inString, size_t length, int messageEnd, bool blocking)
 Input multiple bytes that may be modified by callee on a channel. More...

virtual bool ChannelFlush (const std::string &channel, bool hardFlush, int propagation=-1, bool blocking=true)
 Flush buffered input and/or output on a channel. More...

virtual bool ChannelMessageSeriesEnd (const std::string &channel, int propagation=-1, bool blocking=true)
 Marks the end of a series of messages on a channel. More...

virtual void SetRetrievalChannel (const std::string &channel)
 Sets the default retrieval channel. More...

virtual void Attach (BufferedTransformation *newAttachment)
 Add newAttachment to the end of attachment chain. More...

- Public Member Functions inherited from Algorithm
 Algorithm (bool checkSelfTestStatus=true)
 Interface for all crypto algorithms. More...

virtual std::string AlgorithmName () const
 Provides the name of this algorithm. More...

- Public Member Functions inherited from Clonable
virtual ClonableClone () const
 Copies this object. More...

- Public Member Functions inherited from Waitable
bool Wait (unsigned long milliseconds, CallStack const &callStack)
 Wait on this object. More...


Additional Inherited Members

- Static Public Attributes inherited from BufferedTransformation
static const std::string & NULL_CHANNEL = DEFAULT_CHANNEL


Detailed Description

DEFLATE compressor (RFC 1951)

Definition at line 73 of file zdeflate.h.

Member Enumeration Documentation

anonymous enum

Deflate level as enumerated values.

Enumerator
MIN_DEFLATE_LEVEL

Minimum deflation level, fastest speed (0)

DEFAULT_DEFLATE_LEVEL

Default deflation level, compromise between speed (6)

MAX_DEFLATE_LEVEL

Minimum deflation level, slowest speed (9)

Definition at line 77 of file zdeflate.h.

anonymous enum

Windows size as enumerated values.

Enumerator
MIN_LOG2_WINDOW_SIZE

Minimum window size, smallest table (9)

DEFAULT_LOG2_WINDOW_SIZE

Default window size (15)

MAX_LOG2_WINDOW_SIZE

Maximum window size, largest table (15)

Definition at line 86 of file zdeflate.h.

Constructor & Destructor Documentation

Deflator::Deflator ( BufferedTransformation attachment = NULL,
int  deflateLevel = DEFAULT_DEFLATE_LEVEL,
int  log2WindowSize = DEFAULT_LOG2_WINDOW_SIZE,
bool  detectUncompressible = true
)

Construct a Deflator compressor.

Parameters
attachmentan attached transformation
deflateLevelthe deflate level
log2WindowSizethe window size
detectUncompressibleflag to detect if data is compressible

detectUncompressible makes it faster to process uncompressible files, but if a file has both compressible and uncompressible parts, it may fail to compress some of the compressible parts.

Definition at line 222 of file zdeflate.cpp.

Deflator::Deflator ( const NameValuePairs parameters,
BufferedTransformation attachment = NULL
)

Construct a Deflator compressor.

Parameters
parametersa set of NameValuePairs to initialize this object
attachmentan attached transformation

Possible parameter names: Log2WindowSize, DeflateLevel, DetectUncompressible

Definition at line 230 of file zdeflate.cpp.

Member Function Documentation

void Deflator::SetDeflateLevel ( int  deflateLevel)

Sets the deflation level.

Parameters
deflateLevelthe level of deflation

SetDeflateLevel can be used to set the deflate level in the middle of compression

Definition at line 301 of file zdeflate.cpp.

int Deflator::GetDeflateLevel ( ) const
inline

Retrieves the deflation level.

Returns
the level of deflation

Definition at line 116 of file zdeflate.h.

int Deflator::GetLog2WindowSize ( ) const
inline

Retrieves the window size.

Returns
the windows size

Definition at line 120 of file zdeflate.h.

void Deflator::IsolatedInitialize ( const NameValuePairs parameters)
virtual

Initialize or reinitialize this object, without signal propagation.

Parameters
parametersa set of NameValuePairs to initialize this object
Exceptions
NotImplemented

IsolatedInitialize() is used to initialize or reinitialize an object using a variable number of arbitrarily typed arguments. The function avoids the need for multiple constuctors providing all possible combintations of configurable parameters.

IsolatedInitialize() does not call Initialize() on attached transformations. If initialization should be propagated, then use the Initialize() function.

If a derived class does not override IsolatedInitialize(), then the base class throws NotImplemented.

Reimplemented from BufferedTransformation.

Definition at line 250 of file zdeflate.cpp.

size_t Deflator::Put2 ( const byte *  inString,
size_t  length,
int  messageEnd,
bool  blocking
)
virtual

Input multiple bytes for processing.

Parameters
inStringthe byte buffer to process
lengththe size of the string, in bytes
messageEndmeans how many filters to signal MessageEnd() to, including this one
blockingspecifies whether the object should block when processing input

Derived classes must implement Put2().

Implements BufferedTransformation.

Definition at line 506 of file zdeflate.cpp.

bool Deflator::IsolatedFlush ( bool  hardFlush,
bool  blocking
)
virtual

Flushes data buffered by this object, without signal propagation.

Parameters
hardFlushindicates whether all data should be flushed
blockingspecifies whether the object should block when processing input
Note
hardFlush must be used with care

Implements BufferedTransformation.

Definition at line 536 of file zdeflate.cpp.


The documentation for this class was generated from the following files:
