XTR_DH Class Reference

#include <xtrcrypt.h>

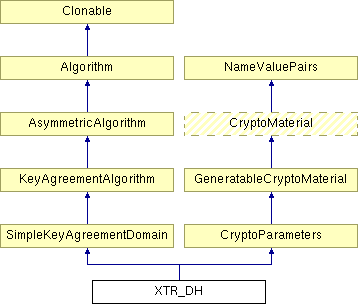

Inheritance diagram for XTR_DH:

List of all members.

---

Detailed Description

XTR-DH with key validation.

Definition at line 14 of file xtrcrypt.h.

Public Member Functions
	XTR_DH (const Integer &p, const Integer &q, const GFP2Element &g)
	XTR_DH (RandomNumberGenerator &rng, unsigned int pbits, unsigned int qbits)
	XTR_DH (BufferedTransformation &domainParams)
void	DEREncode (BufferedTransformation &domainParams) const
	for backwards compatibility, calls GetMaterial().Save(bt)
bool	Validate (RandomNumberGenerator &rng, unsigned int level) const
	check this object for errors
bool	GetVoidValue (const char *name, const std::type_info &valueType, void *pValue) const
	to be implemented by derived classes, users should use one of the above functions instead
void	AssignFrom (const NameValuePairs &source)
	assign values from source to this object
CryptoParameters &	AccessCryptoParameters ()
unsigned int	AgreedValueLength () const
	return length of agreed value produced
unsigned int	PrivateKeyLength () const
	return length of private keys in this domain
unsigned int	PublicKeyLength () const
	return length of public keys in this domain
void	GeneratePrivateKey (RandomNumberGenerator &rng, byte *privateKey) const
	generate private key
void	GeneratePublicKey (RandomNumberGenerator &rng, const byte *privateKey, byte *publicKey) const
	generate public key
bool	Agree (byte *agreedValue, const byte *privateKey, const byte *otherPublicKey, bool validateOtherPublicKey=true) const
	derive agreed value from your private key and couterparty's public key, return false in case of failure
const Integer &	GetModulus () const
const Integer &	GetSubgroupOrder () const
const GFP2Element &	GetSubgroupGenerator () const
void	SetModulus (const Integer &p)
void	SetSubgroupOrder (const Integer &q)
void	SetSubgroupGenerator (const GFP2Element &g)
virtual void	GenerateKeyPair (RandomNumberGenerator &rng, byte *privateKey, byte *publicKey) const
	generate private/public key pair
CryptoMaterial &	AccessMaterial ()
	returns a reference to the crypto material used by this object
const CryptoMaterial &	GetMaterial () const
	returns a const reference to the crypto material used by this object
virtual const CryptoParameters &	GetCryptoParameters () const
void	BERDecode (BufferedTransformation &bt)
	for backwards compatibility, calls AccessMaterial().Load(bt)
virtual std::string	AlgorithmName () const
	returns name of this algorithm, not universally implemented yet
virtual Clonable *	Clone () const
	this is not implemented by most classes yet

---

Member Function Documentation

bool XTR_DH::Validate	(	RandomNumberGenerator &	rng,
		unsigned int	level
	)			const [virtual]

check this object for errors

Parameters:

level

denotes the level of thoroughness: 0 - using this object won't cause a crash or exception (rng is ignored) 1 - this object will probably function (encrypt, sign, etc.) correctly (but may not check for weak keys and such) 2 - make sure this object will function correctly, and do reasonable security checks 3 - do checks that may take a long time

Returns:

true if the tests pass

Implements CryptoMaterial.

Definition at line 41 of file xtrcrypt.cpp.

References GFP2Element::c1, GFP2Element::c2, Integer::IsNegative(), Integer::IsOdd(), Integer::One(), and Integer::Squared().

void XTR_DH::AssignFrom

(

const NameValuePairs &

source

)

[virtual]

assign values from source to this object

Note:

This function can be used to create a public key from a private key.

Implements CryptoMaterial.

Definition at line 68 of file xtrcrypt.cpp.

void XTR_DH::GeneratePrivateKey	(	RandomNumberGenerator &	rng,
		byte *	privateKey
	)			const [virtual]

generate private key

Precondition:

size of privateKey == PrivateKeyLength()

Implements SimpleKeyAgreementDomain.

Definition at line 77 of file xtrcrypt.cpp.

References Integer::Encode(), PrivateKeyLength(), and Integer::Zero().

void XTR_DH::GeneratePublicKey	(	RandomNumberGenerator &	rng,
		const byte *	privateKey,
		byte *	publicKey
	)			const [virtual]

generate public key

Precondition:

size of publicKey == PublicKeyLength()

Implements SimpleKeyAgreementDomain.

Definition at line 83 of file xtrcrypt.cpp.

References GFP2Element::Encode(), PrivateKeyLength(), and PublicKeyLength().

bool XTR_DH::Agree	(	byte *	agreedValue,
		const byte *	privateKey,
		const byte *	otherPublicKey,
		bool	validateOtherPublicKey = true
	)			const [virtual]

derive agreed value from your private key and couterparty's public key, return false in case of failure

Note:

If you have previously validated the public key, use validateOtherPublicKey=false to save time.

Precondition:

size of agreedValue == AgreedValueLength()

length of privateKey == PrivateKeyLength()

length of otherPublicKey == PublicKeyLength()

Implements SimpleKeyAgreementDomain.

Definition at line 90 of file xtrcrypt.cpp.

References AgreedValueLength(), GFP2Element::c1, GFP2Element::c2, GFP2_ONB< F >::ConvertIn(), GFP2Element::Encode(), Integer::IsNegative(), PrivateKeyLength(), and PublicKeyLength().

void SimpleKeyAgreementDomain::GenerateKeyPair	(	RandomNumberGenerator &	rng,
		byte *	privateKey,
		byte *	publicKey
	)			const [virtual, inherited]

generate private/public key pair

Note:

equivalent to calling GeneratePrivateKey() and then GeneratePublicKey()

Definition at line 675 of file cryptlib.cpp.

References SimpleKeyAgreementDomain::GeneratePrivateKey(), and SimpleKeyAgreementDomain::GeneratePublicKey().

---

The documentation for this class was generated from the following files:

• xtrcrypt.h
• xtrcrypt.cpp

---
