DH2 Class Reference

#include <dh2.h>

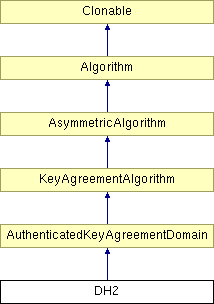

Inheritance diagram for DH2:

AuthenticatedKeyAgreementDomain KeyAgreementAlgorithm AsymmetricAlgorithm Algorithm Clonable List of all members.

Detailed Description

Unified Diffie-Hellman

Definition at line 12 of file dh2.h.

Public Member Functions

 DH2 (const SimpleKeyAgreementDomain &domain)
 DH2 (const SimpleKeyAgreementDomain &staticDomain, const SimpleKeyAgreementDomain &ephemeralDomain)
unsigned int AgreedValueLength () const
 return length of agreed value produced
unsigned int StaticPrivateKeyLength () const
 return length of static private keys in this domain
unsigned int StaticPublicKeyLength () const
 return length of static public keys in this domain
void GenerateStaticPrivateKey (RandomNumberGenerator &rng, byte *privateKey) const
 generate static private key
void GenerateStaticPublicKey (RandomNumberGenerator &rng, const byte *privateKey, byte *publicKey) const
 generate static public key
void GenerateStaticKeyPair (RandomNumberGenerator &rng, byte *privateKey, byte *publicKey) const
 generate private/public key pair
unsigned int EphemeralPrivateKeyLength () const
 return length of ephemeral private keys in this domain
unsigned int EphemeralPublicKeyLength () const
 return length of ephemeral public keys in this domain
void GenerateEphemeralPrivateKey (RandomNumberGenerator &rng, byte *privateKey) const
 generate ephemeral private key
void GenerateEphemeralPublicKey (RandomNumberGenerator &rng, const byte *privateKey, byte *publicKey) const
 generate ephemeral public key
void GenerateEphemeralKeyPair (RandomNumberGenerator &rng, byte *privateKey, byte *publicKey) const
 generate private/public key pair
bool Agree (byte *agreedValue, const byte *staticPrivateKey, const byte *ephemeralPrivateKey, const byte *staticOtherPublicKey, const byte *ephemeralOtherPublicKey, bool validateStaticOtherPublicKey=true) const
 derive agreed value from your private keys and couterparty's public keys, return false in case of failure
CryptoMaterialAccessMaterial ()
 returns a reference to the crypto material used by this object
const CryptoMaterialGetMaterial () const
 returns a const reference to the crypto material used by this object
virtual CryptoParametersAccessCryptoParameters ()=0
virtual const CryptoParametersGetCryptoParameters () const
void BERDecode (BufferedTransformation &bt)
 for backwards compatibility, calls AccessMaterial().Load(bt)
void DEREncode (BufferedTransformation &bt) const
 for backwards compatibility, calls GetMaterial().Save(bt)
virtual std::string AlgorithmName () const
 returns name of this algorithm, not universally implemented yet
virtual ClonableClone () const
 this is not implemented by most classes yet

Protected Attributes

const SimpleKeyAgreementDomaind1
const SimpleKeyAgreementDomaind2


Member Function Documentation

void DH2::GenerateStaticPrivateKey ( RandomNumberGenerator rng,
byte *  privateKey
) const [inline, virtual]

generate static private key

Precondition:
size of privateKey == PrivateStaticKeyLength()

Implements AuthenticatedKeyAgreementDomain.

Definition at line 27 of file dh2.h.

void DH2::GenerateStaticPublicKey ( RandomNumberGenerator rng,
const byte *  privateKey,
byte *  publicKey
) const [inline, virtual]

generate static public key

Precondition:
size of publicKey == PublicStaticKeyLength()

Implements AuthenticatedKeyAgreementDomain.

Definition at line 29 of file dh2.h.

void DH2::GenerateStaticKeyPair ( RandomNumberGenerator rng,
byte *  privateKey,
byte *  publicKey
) const [inline, virtual]

generate private/public key pair

Note:
equivalent to calling GenerateStaticPrivateKey() and then GenerateStaticPublicKey()

Reimplemented from AuthenticatedKeyAgreementDomain.

Definition at line 31 of file dh2.h.

void DH2::GenerateEphemeralPrivateKey ( RandomNumberGenerator rng,
byte *  privateKey
) const [inline, virtual]

generate ephemeral private key

Precondition:
size of privateKey == PrivateEphemeralKeyLength()

Implements AuthenticatedKeyAgreementDomain.

Definition at line 38 of file dh2.h.

void DH2::GenerateEphemeralPublicKey ( RandomNumberGenerator rng,
const byte *  privateKey,
byte *  publicKey
) const [inline, virtual]

generate ephemeral public key

Precondition:
size of publicKey == PublicEphemeralKeyLength()

Implements AuthenticatedKeyAgreementDomain.

Definition at line 40 of file dh2.h.

void DH2::GenerateEphemeralKeyPair ( RandomNumberGenerator rng,
byte *  privateKey,
byte *  publicKey
) const [inline, virtual]

generate private/public key pair

Note:
equivalent to calling GenerateEphemeralPrivateKey() and then GenerateEphemeralPublicKey()

Reimplemented from AuthenticatedKeyAgreementDomain.

Definition at line 42 of file dh2.h.

bool DH2::Agree ( byte *  agreedValue,
const byte *  staticPrivateKey,
const byte *  ephemeralPrivateKey,
const byte *  staticOtherPublicKey,
const byte *  ephemeralOtherPublicKey,
bool  validateStaticOtherPublicKey = true
) const [virtual]

derive agreed value from your private keys and couterparty's public keys, return false in case of failure

Note:
The ephemeral public key will always be validated. If you have previously validated the static public key, use validateStaticOtherPublicKey=false to save time.
Precondition:
size of agreedValue == AgreedValueLength()

length of staticPrivateKey == StaticPrivateKeyLength()

length of ephemeralPrivateKey == EphemeralPrivateKeyLength()

length of staticOtherPublicKey == StaticPublicKeyLength()

length of ephemeralOtherPublicKey == EphemeralPublicKeyLength()

Implements AuthenticatedKeyAgreementDomain.

Definition at line 8 of file dh2.cpp.


The documentation for this class was generated from the following files:
