BERGeneralDecoder Class Reference

#include <asn.h>

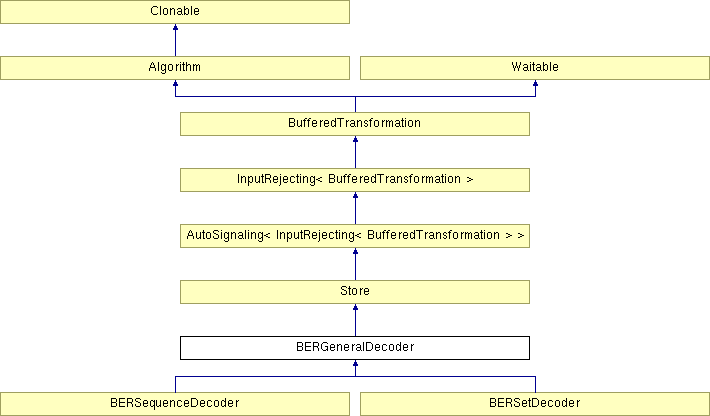

Inheritance diagram for BERGeneralDecoder:

Store AutoSignaling< InputRejecting< BufferedTransformation > > InputRejecting< BufferedTransformation > BufferedTransformation Algorithm Waitable Clonable BERSequenceDecoder BERSetDecoder List of all members.

Detailed Description

BER General Decoder.

Definition at line 128 of file asn.h.

Public Member Functions

 BERGeneralDecoder (BufferedTransformation &inQueue, byte asnTag)
 BERGeneralDecoder (BERGeneralDecoder &inQueue, byte asnTag)
 ~BERGeneralDecoder ()
bool IsDefiniteLength () const
lword RemainingLength () const
bool EndReached () const
byte PeekByte () const
void CheckByte (byte b)
size_t TransferTo2 (BufferedTransformation &target, lword &transferBytes, const std::string &channel=NULL_CHANNEL, bool blocking=true)
 upon return, byteCount contains number of bytes that have finished being transfered, and returns the number of bytes left in the current transfer block
size_t CopyRangeTo2 (BufferedTransformation &target, lword &begin, lword end=LWORD_MAX, const std::string &channel=NULL_CHANNEL, bool blocking=true) const
 upon return, begin contains the start position of data yet to be finished copying, and returns the number of bytes left in the current transfer block
void MessageEnd ()
void IsolatedInitialize (const NameValuePairs &parameters)
unsigned int NumberOfMessages () const
 number of times MessageEnd() has been received minus messages retrieved or skipped
bool GetNextMessage ()
 start retrieving the next message
unsigned int CopyMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=NULL_CHANNEL) const
void SetAutoSignalPropagation (int propagation)
 set propagation of automatically generated and transferred signals
int GetAutoSignalPropagation () const
size_t Put2 (const byte *begin, size_t length, int messageEnd, bool blocking)
 input multiple bytes for blocking or non-blocking processing
bool IsolatedFlush (bool, bool)
bool IsolatedMessageSeriesEnd (bool)
size_t ChannelPut2 (const std::string &channel, const byte *begin, size_t length, int messageEnd, bool blocking)
bool ChannelMessageSeriesEnd (const std::string &, int, bool)
BufferedTransformationRef ()
 return a reference to this object
virtual std::string AlgorithmName () const
 returns name of this algorithm, not universally implemented yet
virtual ClonableClone () const
 this is not implemented by most classes yet
bool Wait (unsigned long milliseconds, CallStack const &callStack)
 wait on this object
INPUT
size_t Put (byte inByte, bool blocking=true)
 input a byte for processing
size_t Put (const byte *inString, size_t length, bool blocking=true)
 input multiple bytes
size_t PutWord16 (word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 input a 16-bit word
size_t PutWord32 (word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
 input a 32-bit word
virtual byte * CreatePutSpace (size_t &size)
 request space which can be written into by the caller, and then used as input to Put()
virtual bool CanModifyInput () const
size_t PutModifiable (byte *inString, size_t length, bool blocking=true)
 input multiple bytes that may be modified by callee
bool MessageEnd (int propagation=-1, bool blocking=true)
size_t PutMessageEnd (const byte *inString, size_t length, int propagation=-1, bool blocking=true)
virtual size_t PutModifiable2 (byte *inString, size_t length, int messageEnd, bool blocking)
 input multiple bytes that may be modified by callee for blocking or non-blocking processing
WAITING
unsigned int GetMaxWaitObjectCount () const
 maximum number of wait objects that this object can return
void GetWaitObjects (WaitObjectContainer &container, CallStack const &callStack)
 put wait objects into container
SIGNALS
virtual void Initialize (const NameValuePairs &parameters=g_nullNameValuePairs, int propagation=-1)
 initialize or reinitialize this object
virtual bool Flush (bool hardFlush, int propagation=-1, bool blocking=true)
 flush buffered input and/or output
virtual bool MessageSeriesEnd (int propagation=-1, bool blocking=true)
 mark end of a series of messages
RETRIEVAL OF ONE MESSAGE
virtual lword MaxRetrievable () const
 returns number of bytes that is currently ready for retrieval
virtual bool AnyRetrievable () const
 returns whether any bytes are currently ready for retrieval
virtual size_t Get (byte &outByte)
 try to retrieve a single byte
virtual size_t Get (byte *outString, size_t getMax)
 try to retrieve multiple bytes
virtual size_t Peek (byte &outByte) const
 peek at the next byte without removing it from the output buffer
virtual size_t Peek (byte *outString, size_t peekMax) const
 peek at multiple bytes without removing them from the output buffer
size_t GetWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 try to retrieve a 16-bit word
size_t GetWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER)
 try to retrieve a 32-bit word
size_t PeekWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 try to peek at a 16-bit word
size_t PeekWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
 try to peek at a 32-bit word
lword TransferTo (BufferedTransformation &target, lword transferMax=LWORD_MAX, const std::string &channel=NULL_CHANNEL)
 move transferMax bytes of the buffered output to target as input
virtual lword Skip (lword skipMax=LWORD_MAX)
 discard skipMax bytes from the output buffer
lword CopyTo (BufferedTransformation &target, lword copyMax=LWORD_MAX, const std::string &channel=NULL_CHANNEL) const
 copy copyMax bytes of the buffered output to target as input
lword CopyRangeTo (BufferedTransformation &target, lword position, lword copyMax=LWORD_MAX, const std::string &channel=NULL_CHANNEL) const
 copy copyMax bytes of the buffered output, starting at position (relative to current position), to target as input
RETRIEVAL OF MULTIPLE MESSAGES
virtual lword TotalBytesRetrievable () const
virtual bool AnyMessages () const
 returns true if NumberOfMessages() > 0
virtual unsigned int SkipMessages (unsigned int count=UINT_MAX)
 skip count number of messages
unsigned int TransferMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=NULL_CHANNEL)
virtual void SkipAll ()
void TransferAllTo (BufferedTransformation &target, const std::string &channel=NULL_CHANNEL)
void CopyAllTo (BufferedTransformation &target, const std::string &channel=NULL_CHANNEL) const
virtual bool GetNextMessageSeries ()
virtual unsigned int NumberOfMessagesInThisSeries () const
virtual unsigned int NumberOfMessageSeries () const
NON-BLOCKING TRANSFER OF OUTPUT
size_t TransferMessagesTo2 (BufferedTransformation &target, unsigned int &messageCount, const std::string &channel=NULL_CHANNEL, bool blocking=true)
 upon return, messageCount contains number of messages that have finished being transfered, and returns the number of bytes left in the current transfer block
size_t TransferAllTo2 (BufferedTransformation &target, const std::string &channel=NULL_CHANNEL, bool blocking=true)
 returns the number of bytes left in the current transfer block
CHANNELS
size_t ChannelPut (const std::string &channel, byte inByte, bool blocking=true)
size_t ChannelPut (const std::string &channel, const byte *inString, size_t length, bool blocking=true)
size_t ChannelPutModifiable (const std::string &channel, byte *inString, size_t length, bool blocking=true)
size_t ChannelPutWord16 (const std::string &channel, word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
size_t ChannelPutWord32 (const std::string &channel, word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
bool ChannelMessageEnd (const std::string &channel, int propagation=-1, bool blocking=true)
size_t ChannelPutMessageEnd (const std::string &channel, const byte *inString, size_t length, int propagation=-1, bool blocking=true)
virtual byte * ChannelCreatePutSpace (const std::string &channel, size_t &size)
virtual size_t ChannelPutModifiable2 (const std::string &channel, byte *begin, size_t length, int messageEnd, bool blocking)
virtual bool ChannelFlush (const std::string &channel, bool hardFlush, int propagation=-1, bool blocking=true)
virtual void SetRetrievalChannel (const std::string &channel)
ATTACHMENT
virtual bool Attachable ()
 returns whether this object allows attachment
virtual BufferedTransformationAttachedTransformation ()
 returns the object immediately attached to this object or NULL for no attachment
virtual const BufferedTransformationAttachedTransformation () const
virtual void Detach (BufferedTransformation *newAttachment=0)
 delete the current attachment chain and replace it with newAttachment
virtual void Attach (BufferedTransformation *newAttachment)
 add newAttachment to the end of attachment chain

Static Public Attributes

static const std::string NULL_CHANNEL

Static Protected Member Functions

static int DecrementPropagation (int propagation)

Protected Attributes

BufferedTransformationm_inQueue
bool m_finished
bool m_definiteLength
lword m_length
bool m_messageEnd


Member Function Documentation

bool Store::GetNextMessage (  )  [virtual, inherited]

start retrieving the next message

Returns false if no more messages exist or this message is not completely retrieved.

Reimplemented from BufferedTransformation.

Definition at line 889 of file filters.cpp.

References BufferedTransformation::AnyRetrievable(), and Store::m_messageEnd.

void AutoSignaling< InputRejecting< BufferedTransformation > >::SetAutoSignalPropagation ( int  propagation  )  [inline, virtual, inherited]

Reimplemented from BufferedTransformation.

Definition at line 157 of file simple.h.

size_t InputRejecting< BufferedTransformation >::Put2 ( const byte *  begin,
size_t  length,
int  messageEnd,
bool  blocking
) [inline, virtual, inherited]

Implements BufferedTransformation.

Definition at line 88 of file simple.h.

BufferedTransformation& BufferedTransformation::Ref (  )  [inline, inherited]

return a reference to this object

This function is useful for passing a temporary BufferedTransformation object to a function that takes a non-const reference.

Definition at line 722 of file cryptlib.h.

virtual byte* BufferedTransformation::CreatePutSpace ( size_t &  size  )  [inline, virtual, inherited]

request space which can be written into by the caller, and then used as input to Put()

Note:
The purpose of this method is to help avoid doing extra memory allocations.

Reimplemented in MeterFilter, HashFilter, Redirector, OutputProxy, ArraySink, ArrayXorSink, ByteQueue, Multichannel< Filter >, and Multichannel< Sink >.

Definition at line 741 of file cryptlib.h.

Referenced by BufferedTransformation::ChannelCreatePutSpace(), and ArrayXorSink::CreatePutSpace().

virtual size_t BufferedTransformation::PutModifiable2 ( byte *  inString,
size_t  length,
int  messageEnd,
bool  blocking
) [inline, virtual, inherited]

input multiple bytes that may be modified by callee for blocking or non-blocking processing

Parameters:
messageEnd means how many filters to signal MessageEnd to, including this one

Reimplemented in MeterFilter, FilterWithBufferedInput, OutputProxy, Multichannel< Filter >, and Multichannel< Sink >.

Definition at line 759 of file cryptlib.h.

Referenced by BufferedTransformation::ChannelPutModifiable2(), NetworkSource::DoPump(), and Filter::OutputModifiable().

void BufferedTransformation::GetWaitObjects ( WaitObjectContainer container,
CallStack const &  callStack
) [virtual, inherited]

put wait objects into container

Parameters:
callStack is used for tracing no wait loops, example: something.GetWaitObjects(c, CallStack("my func after X", 0));
  • or in an outer GetWaitObjects() method that itself takes a callStack parameter: innerThing.GetWaitObjects(c, CallStack("MyClass::GetWaitObjects at X", &callStack));

Implements Waitable.

Reimplemented in Redirector, NetworkSource, and NetworkSink.

Definition at line 188 of file cryptlib.cpp.

References BufferedTransformation::AttachedTransformation(), and BufferedTransformation::GetWaitObjects().

Referenced by NetworkSource::GetWaitObjects(), and BufferedTransformation::GetWaitObjects().

bool BufferedTransformation::Flush ( bool  hardFlush,
int  propagation = -1,
bool  blocking = true
) [virtual, inherited]

flush buffered input and/or output

Parameters:
hardFlush is used to indicate whether all data should be flushed
Note:
Hard flushes must be used with care. It means try to process and output everything, even if there may not be enough data to complete the action. For example, hard flushing a HexDecoder would cause an error if you do it after inputing an odd number of hex encoded characters. For some types of filters, for example ZlibDecompressor, hard flushes can only be done at "synchronization points". These synchronization points are positions in the data stream that are created by hard flushes on the corresponding reverse filters, in this example ZlibCompressor. This is useful when zlib compressed data is moved across a network in packets and compression state is preserved across packets, as in the ssh2 protocol.

Reimplemented in Filter, Redirector, OutputProxy, SecretSharing, InformationDispersal, Unflushable< Filter >, Unflushable< Sink >, Unflushable< Multichannel< Filter > >, Multichannel< Filter >, and Multichannel< Sink >.

Definition at line 201 of file cryptlib.cpp.

References BufferedTransformation::AttachedTransformation().

Referenced by BufferedTransformation::ChannelFlush().

bool BufferedTransformation::MessageSeriesEnd ( int  propagation = -1,
bool  blocking = true
) [virtual, inherited]

mark end of a series of messages

There should be a MessageEnd immediately before MessageSeriesEnd.

Reimplemented in Filter, Redirector, OutputProxy, Multichannel< Filter >, and Multichannel< Sink >.

Definition at line 207 of file cryptlib.cpp.

References BufferedTransformation::AttachedTransformation(), and BufferedTransformation::IsolatedMessageSeriesEnd().

Referenced by EqualityComparisonFilter::ChannelMessageSeriesEnd(), BufferedTransformation::ChannelMessageSeriesEnd(), and EncodedObjectFilter::Put().

lword BufferedTransformation::MaxRetrievable (  )  const [virtual, inherited]

returns number of bytes that is currently ready for retrieval

All retrieval functions return the actual number of bytes retrieved, which is the lesser of the request number and MaxRetrievable().

Reimplemented in FileStore, RandomNumberStore, NullStore, MessageQueue, ByteQueue, ByteQueue::Walker, and RandomPool.

Definition at line 253 of file cryptlib.cpp.

References BufferedTransformation::AttachedTransformation(), BufferedTransformation::CopyTo(), and BufferedTransformation::MaxRetrievable().

Referenced by RandomNumberStore::AnyRetrievable(), Integer::BERDecode(), Integer::Decode(), DL_GroupParameters_EC< EC >::Initialize(), BufferedTransformation::MaxRetrievable(), EcRecommendedParameters< ECP >::NewEC(), EcRecommendedParameters< EC2N >::NewEC(), Integer::OpenPGPDecode(), and BufferedTransformation::TotalBytesRetrievable().

virtual bool BufferedTransformation::Attachable (  )  [inline, virtual, inherited]

returns whether this object allows attachment

Some BufferedTransformation objects (e.g. Filter objects) allow other BufferedTransformation objects to be attached. When this is done, the first object instead of buffering its output, sents that output to the attached object as input. The entire attachment chain is deleted when the anchor object is destructed.

Reimplemented in Filter.

Definition at line 949 of file cryptlib.h.

Referenced by BufferedTransformation::Attach().

bool Waitable::Wait ( unsigned long  milliseconds,
CallStack const &  callStack
) [inherited]

wait on this object

same as creating an empty container, calling GetWaitObjects(), and calling Wait() on the container

Definition at line 388 of file wait.cpp.

References Waitable::GetWaitObjects(), and WaitObjectContainer::Wait().

Referenced by NetworkSink::DoFlush(), and NetworkSource::DoPump().


The documentation for this class was generated from the following files:
Generated on Sat Dec 23 02:07:15 2006 for Crypto++ by  doxygen 1.5.1-p1
